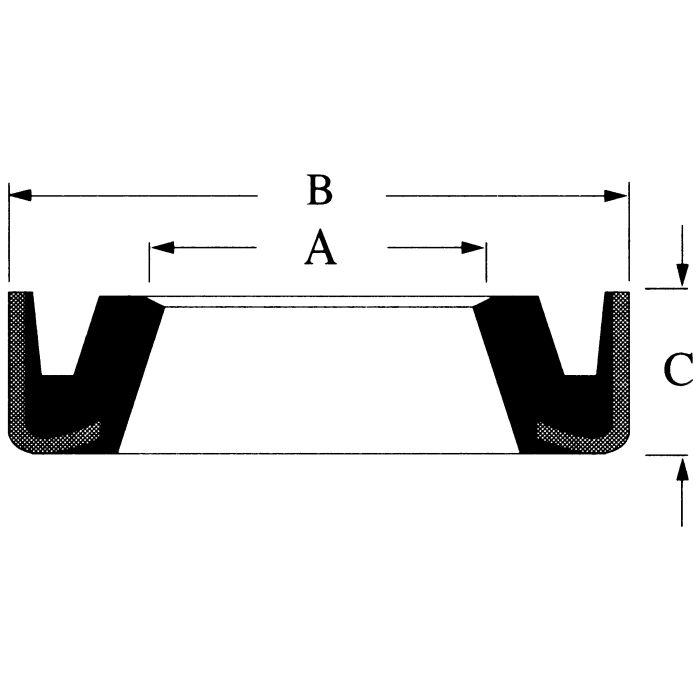

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.75 Inch Wiper OD, 0.25 Inch Height

C 0.25	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 1.25	Supplier Part Number MCN-1254	Product Weight 0.03 lbs	Alternate Part Numbers Alternate Part Number C1DD85, Alternate Part Number MI-02227812, Alternate Part Number MINO-00407X30567

Product Questions & Answers 2

Product Questions & Answers

Got a cylinder with a 1.25 inch rod and need to replace the wiper, this thing gonna fit right without having to machine anything?

Question by: Earl S on Feb 13, 2026, 4:42 PM

For a standard 1.25-inch rod diameter with a housing bore of 1.75 inches, this wiper drops right in. The 0.25-inch height keeps it seated flush in the groove without any modification needed. The metal-clad outer casing holds its shape in the housing, so you're not fighting it during install. Just confirm your groove depth matches that 0.25-inch dimension and you're good to go.

Answer by: Customer Support on Feb 15, 2026, 12:09 PM

got a cylinder with a 1.25 rod, is this the right wiper size or am i missing something

Question by: Pete P on Dec 2, 2025, 5:40 PM

Match the rod diameter and the wiper’s outer diameter and height. This wiper ring is sized for a 1.25 inch rod, with a 1.75 inch wiper OD and a 0.25 inch installed height.

Answer by: Customer Support on Dec 4, 2025, 3:29 PM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
