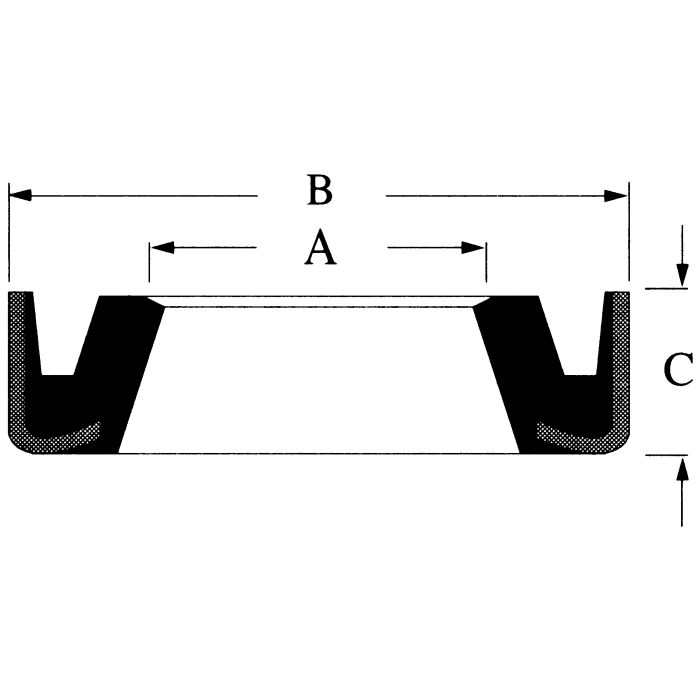

Metal-Clad Rubber Wiper Ring, 1.25 Inch Rod Diameter, 1.69 Inch Wiper OD, 0.19 Inch Height

C 0.19	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 1.25	Supplier Part Number MCN-1253	Product Weight 0.02 lbs	Alternate Part Numbers Alternate Part Number C1DD84, Alternate Part Number MI-00942930, Alternate Part Number MINO-00407X15108

Product Questions & Answers 1

Product Questions & Answers

got a 1.25 rod on my cylinder, is this wiper the right size or am i gonna fight it

Question by: Glen B on Dec 15, 2025, 5:58 PM

Fit comes down to the gland dimensions, and this one is made for a 1.25 inch rod with a 1.688 inch wiper OD and 0.1875 inch height. It is a metal-clad style, so it seats consistently in the housing bore when the bore matches that OD.

Answer by: Customer Support on Dec 17, 2025, 6:22 AM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
