Metal-Clad Rubber Wiper Ring, 1.00 Inch Rod Diameter, 1.25 Inch Wiper OD, 0.13 Inch Height

C 0.13	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 1	Supplier Part Number MCN-1001	Product Weight 0.01 lbs	Alternate Part Numbers Alternate Part Number C1DD80, Alternate Part Number MI-00942871, Alternate Part Number MINO-00407X15100

Product Questions & Answers 2

Product Questions & Answers

Got a cylinder that takes a 1-inch rod and the wiper's shot. This the right size to drop in as a replacement?

Question by: Randy H on Dec 30, 2025, 10:36 AM

For a 1-inch rod diameter, yes, this one fits. The outer diameter runs 1.25 inches and the height comes in at 0.13 inches, so as long as your gland is cut to accept those dimensions, it should seat right in. The metal cladding helps it stay put during installation and keeps it from shifting once it's in place, which makes swapping it out pretty straightforward on a standard cylinder service.

Answer by: Customer Support on Dec 31, 2025, 7:49 PM

i got a cylinder with a 1 inch rod, is this the right wiper size or am i gonna be fighting it

Question by: Bonnie H on Jun 13, 2025, 7:12 PM

Match the rod diameter and the wiper outside diameter. This one is sized for a 1.00 inch rod, with a 1.25 inch wiper OD and about a 0.13 inch height profile, so it is meant to seat in a gland made for those dimensions.

Answer by: Customer Support on Jun 14, 2025, 7:26 PM

Similar Products

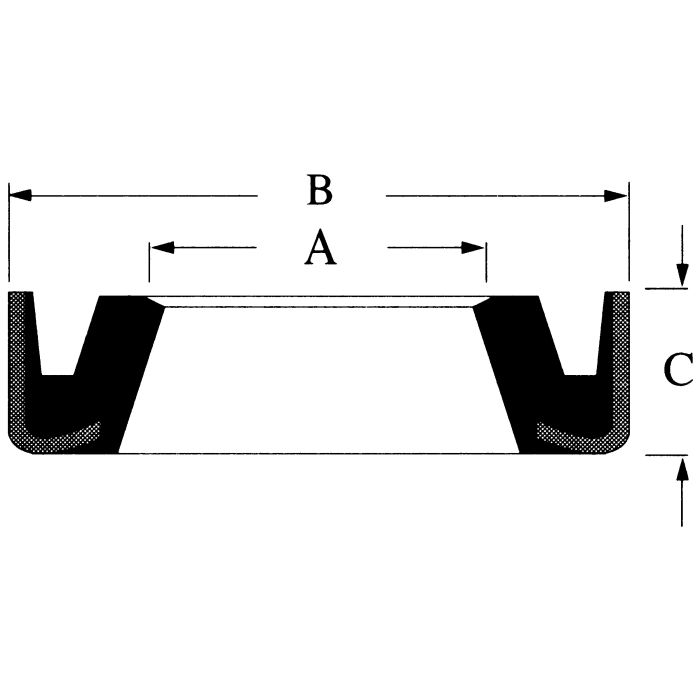

Model Number	Rod Diameter A	Wiper O.D. B	C
MCN-1001	1	1.25	0.125
MCN-1003	1	1.375	0.1875
MCN-1005	1	1.5	0.1875
MCN-1253	1.25	1.688	0.1875
MCN-1254	1.25	1.75	0.25
MCN-1375	1.375	1.75	0.1875
MCN-1502	1.5	1.875	0.25
MCN-1503	1.5	1.875	0.1875
MCN-1504	1.5	2	0.25
MCN-1753	1.75	2.125	0.1875
MCN-1754	1.75	2.25	0.25
MCN-1755	1.75	2.375	0.25
MCN-2001	2	2.375	0.1875
MCN-2002	2	2.625	0.25
MCN-2003	2	2.5	0.25
MCN-2253	2.25	2.75	0.25
MCN-2501	2.5	3	0.25
MCN-3001	3	3.5	0.25
