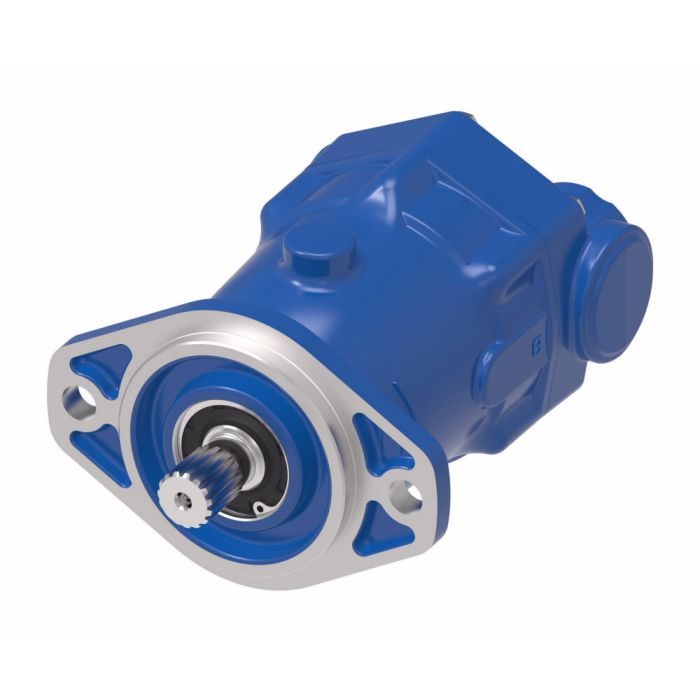

Medium Duty Piston Motor, 2.48 cu in/rev, SAE B 2-Bolt Mounting Flange, 13T SAE B Splined Shaft, Side Ports: SAE-16 Work, SAE-8 Case Drain. Advanced design features|Through drive option|Easy to configure and service

For log skidder work, that speed rating holds well within the continuous operating range this motor is built for. The 5000 PSI continuous pressure rating and 5400 PSI intermittent ceiling give you meaningful headroom when loads spike unexpectedly. The housing is built to be durable and lightweight, and the dual rotation capability means you've got flexibility if your drive setup ever changes. Just keep your fluid clean, ISO 4406 cleanliness level 18/13 or better, and your inlet temps under 225 degrees F, and this motor should give you reliable service in that kind of demanding application.

It comes with an SAE B 2-bolt mounting flange and a 13T SAE B splined shaft, so it matches that mount and shaft style.

On this build the ports are on the side. The work ports are SAE-16 and the case drain is SAE-8.

These medium duty piston motors are often found on harvesters, sprayers, log skidders, and even things like lawn tractors or lift trucks.

For continuous operation, the key number to watch is the 5000 PSI continuous pressure rating, with a ceiling of 5400 PSI on an intermittent basis. At 2.48 cubic inches per revolution, this motor sits at the upper end of the displacement range where the case pressure limit holds at 25 PSI. As long as your case drain line runs directly back to the reservoir and terminates below the fluid surface, and you keep that case full at all times, it handles sustained duty well. The 3600 RPM speed rating gives you solid headroom depending on your drive setup. Just make sure your fluid stays in the 60 to 180 SSU range for optimum performance.
