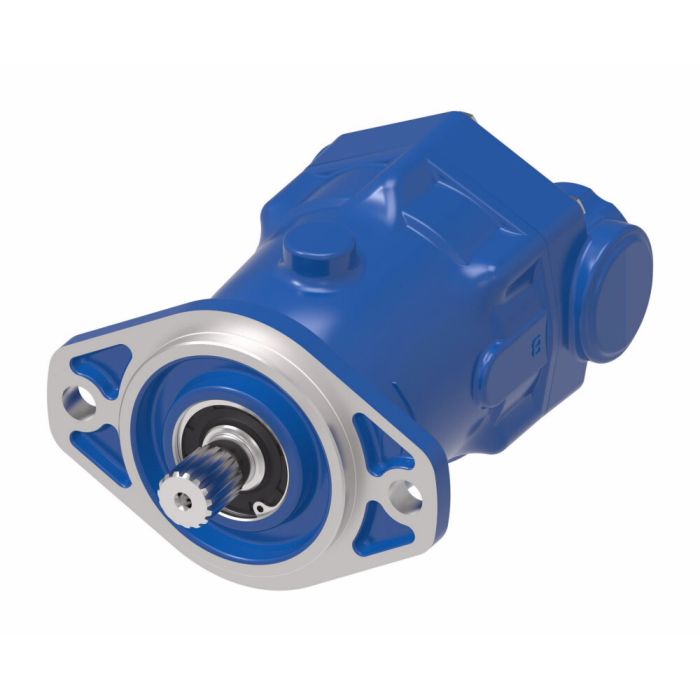

Medium Duty Piston Motor, 2.01 cu in/rev, SAE B 2-Bolt Mounting Flange, 13T SAE B Splined Shaft, Side Ports: SAE-16 Work, SAE-8 Case Drain. Advanced design features|Through drive option|Easy to configure and service

Application Harvesters, Sprayers, Log Skidders, Fan Drives, Lawn Tractors, Lift Trucks, Scissor Lifts, Bark Removers	Displacement 2.01	Displacement 2.01	Brand Danfoss (Net)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Advanced design features\|Through drive option\|Easy to configure and service	Identification Standard	Maximum Displacement 32.90	Maximum Intermittent Pressure 5400	Mount SAE B 2-Bolt	Mount SAE B 2-Bolt	P Control No Control - Fixed Displacement	Ports Side Ports: SAE-16 Work, SAE-8 Case Drain	Ports Side Ports: SAE-16 Work, SAE-8 Case Drain	Pressure Rating 5000	Shaft 13T SAE B Splined	Shaft 13T SAE B Splined	Special Features Rotating Kit With Small Land	Speed Rating 3600 RPM	Speed Rating 3600 RPM	Supplier Part Number 74315-DCU	Torque Rating 183.36 newton metre	Torque Rating 183.36 newton metre	Alternate Part Numbers Alternate Part Number C1HE22	Product Weight 20.00 lbs

Product Questions & Answers

got a motor with side work ports, are these the SAE-16 work ports and SAE-8 case drain on the side like this one?

Question by: Gene O on Jan 18, 2026, 7:50 PM

This motor is set up with side ports that are SAE-16 for the work ports and an SAE-8 for the case drain, all on the side.

Answer by: Customer Support on Jan 20, 2026, 12:07 PM

got a quick fit check. what mounting flange and shaft is on this 74315-DCU motor?

Question by: Floyd P on Nov 14, 2025, 5:30 PM

For fitment, it comes with an SAE B 2-bolt mounting flange and a 13T SAE B splined shaft.

Answer by: Customer Support on Nov 16, 2025, 6:40 AM

Model Number	Displacement	Pressure Rating	Mount	Shaft	Ports	Features	Speed Rating	Maximum Intermittent Pressure
74315-DCU	2.01	5000	SAE B 2-Bolt	13T SAE B Splined	Side Ports: SAE-16 Work, SAE-8 Case Drain	Advanced design features\|Through drive option\|Easy to configure and service	3600 RPM	5400
74318-DFW	2.48	5000	SAE B 2-Bolt	13T SAE B Splined	Side Ports: SAE-16 Work, SAE-8 Case Drain	Advanced design features\|Through drive option\|Easy to configure and service	3600 RPM	5400
74315-DBF	2.01	5000	SAE B 2-Bolt	13T SAE B Splined	Side Ports: SAE-16 Work, SAE-8 Case Drain	Advanced design features\|Through drive option\|Easy to configure and service	3600 RPM	5400
