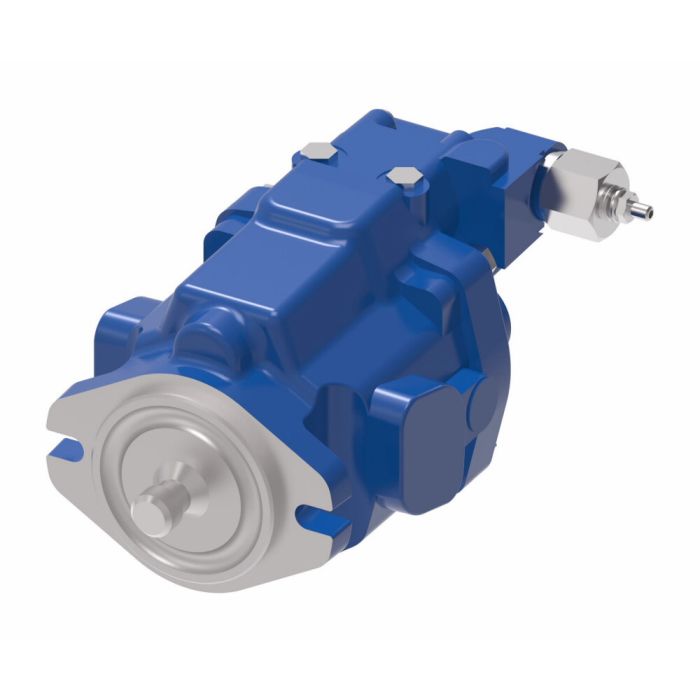

Medium Duty Mobile Piston Pump, 1.16 cu in/rev, 2-Bolt SAE A Mounting Flange, 9T SAE A Splined Shaft, Pressure Compensated Control, Compact, lighweight durable aluminum|Numerous shaft options|Auxiliary mounting flange available

Application Mobile	Color Primer Per Spec 209-13A	Control Pressure Compensated	Design Code A	Displacement 1.16	Displacement 1.16	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available	Identification Standard	Mount 2-Bolt SAE A	Mount 2-Bolt SAE A	Rated Flow 9	Rated Flow 9	Series 70122 Series	Shaft 9T SAE A Splined	Shaft 9T SAE A Splined	Speed Rating 2500 RPM	Speed Rating 2500 RPM	Supplier Part Number 70122-RBB	Alternate Part Numbers Alternate Part Number C1KC97	Product Weight 20.00 lbs

Product Questions & Answers 1

Product Questions & Answers

pump says it'll run up to 2500 RPM, is that a hard limit or just the rated speed for optimal performance?

Question by: Daryl H on Sep 2, 2025, 9:07 PM

2500 RPM is the rated operating speed for this pump. Running it within that range is where you'll get reliable, consistent performance. Pushing beyond a rated speed on a piston pump like this tends to accelerate wear and can cause pressure control issues, so staying at or under that threshold is the right call for long-term use.

Answer by: Customer Support on Sep 4, 2025, 1:26 PM

Similar Products

Part Number	Displacement	Speed Rating	Rated Flow	Control	Shaft	Features
70122-RBB	1.16	2500 RPM	9	Pressure Compensated	9T SAE A Splined	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available
70122-RCA	1.16	2500 RPM	9	Pressure Compensated	3/4 Straight Keyed	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available
70122-RCW	1.16	2500 RPM	9	Pressure Compensated	9T SAE A Splined	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available
70523-LAB	4.21	2500 RPM	32.8	Pressure Compensated Load Sense	14T SAE C Splined	CCW Rotation, Side Ports (2 Inch Code 61 Flange Inlet, 1 Inch Code 61 Flange Outlet), SAE-10 Case Drain, 3000 PSI Compensator Setting (Adjustable), 200 PSI Load Sense Bias (Non-adjustable)
70553-RAB	4.21	2500 RPM	32.8	Pressure Compensated Load Sense	14T SAE C Splined	Compact, lighweight durable aluminum\|Numerous shaft options\|Auxiliary mounting flange available
