Mechanical Push Puller, Up To 30 Ton

Group Description	For removing and installing gears, bearings, pulleys and other press-fitted parts. Federal Specification: GGG-P-00781-D.
Features	Can apply a pushing or pulling force, depending on how the puller is set up • Optional leg kits adapt your Push-Puller® to extra long or extra short reach • A wide variety of threaded adapters, bearing pulling attachments and internal pulling attachments can be used in combination with these Push-Pullers.®
How It Works	1. Determine if you want the tool’s forcing screw to push or pull. 2. To exert pushing force, the forcing nut is installed beneath the cross block, as shown on left. 3. To cause the forcing screw to pull, the forcing nut is placed on top of the cross block. 4. The sliding plates must always be placed on the opposite side of the cross block from the forcing nut.
How to Order	Each Push-Puller’s specified tonnage “capacity” is determined using its standard legs in tension. Using longer legs, or a setup in which the legs are in compression, will reduce the “capacity”. Always select the largest “capacity” puller and the shortest legs that will fit the job.

Products

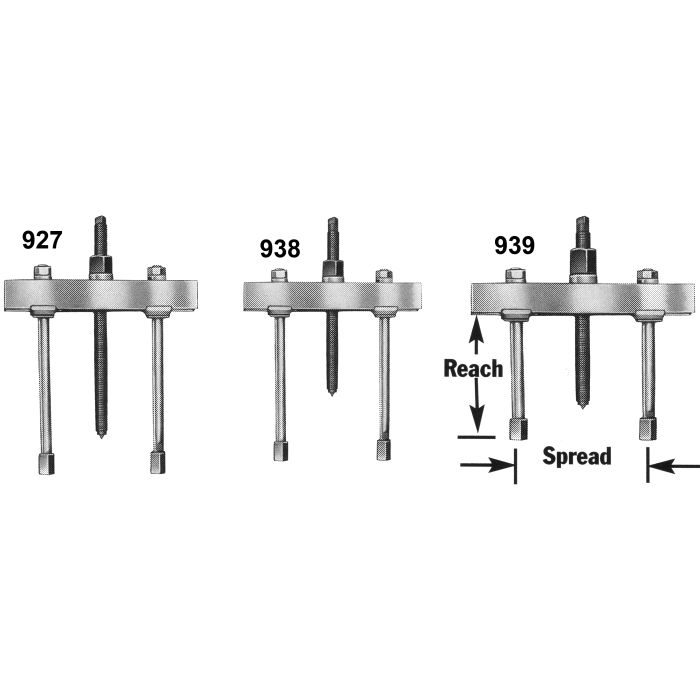

Model Number	Product Description	Maximum Reach	Maximum Spread Range (in)	Screw Size (in)	Notes	Price	Buy Now
927	SPX POWER TEAM MECHANICAL PUSH-PULLER 10	8.25	2-1/8 - 7-1/4
939	SPX PUSH PULLER	10.5	7 - 16-1/4
