Adaptall Mbspp-Mbspp Bulkhead 2.3" Long 2608057

Specifications

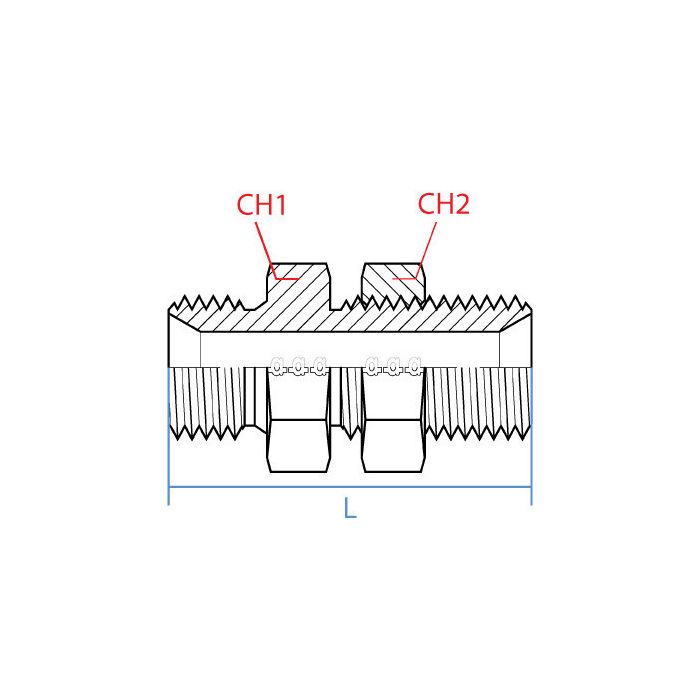

CH1 Width 32mm	CH2 Width 32mm	L Length 59mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspp	Side 2 Callout G 3/4 - 14	Side 2 Gender M	Side 2 Size 3/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9040-08-12	Product Weight 0.36 lbs

Product Questions & Answers 3

Product Questions & Answers

Will this bulkhead connector work for hooking up hydraulic lines of different sizes? I've got a 1/2" line on one side and a 3/4" on the other.

Question by: Clint J on Apr 6, 2026, 12:12 PM

This Adaptall bulkhead fitting is designed to connect hydraulic lines with different BSPP thread sizes. It features a 1/2" BSPP male connection on one side and a 3/4" BSPP male connection on the other, so it sounds like it should do the trick for you.

Answer by: Customer Support on Apr 7, 2026, 2:56 PM

both sides are male BSPP threads on this thing, does that mean it's meant to pass through a panel or bulkhead wall and connect lines on each side?

Question by: Ronnie R on Jun 26, 2025, 9:17 AM

Exactly right. The male threads on both ends fit into female BSPP ports on either side of a panel or wall, letting you run a hydraulic line cleanly through without needing extra fittings in between. The 59mm overall length gives you enough reach to handle typical panel thickness while still threading in solid on both sides.

Answer by: Customer Support on Jun 28, 2025, 6:25 AM

got a bulkhead spot that needs bsp parallel threads on both sides. what sizes are on this one?

Question by: Diane Y on Apr 23, 2025, 4:55 PM

Both ends are BSPP male, but they are not the same size. Side 1 is G 1/2 - 14 with a 1/2 inch male connection, and side 2 is G 3/4 - 14 with a 3/4 inch male connection.

Answer by: Customer Support on Apr 25, 2025, 6:08 AM
