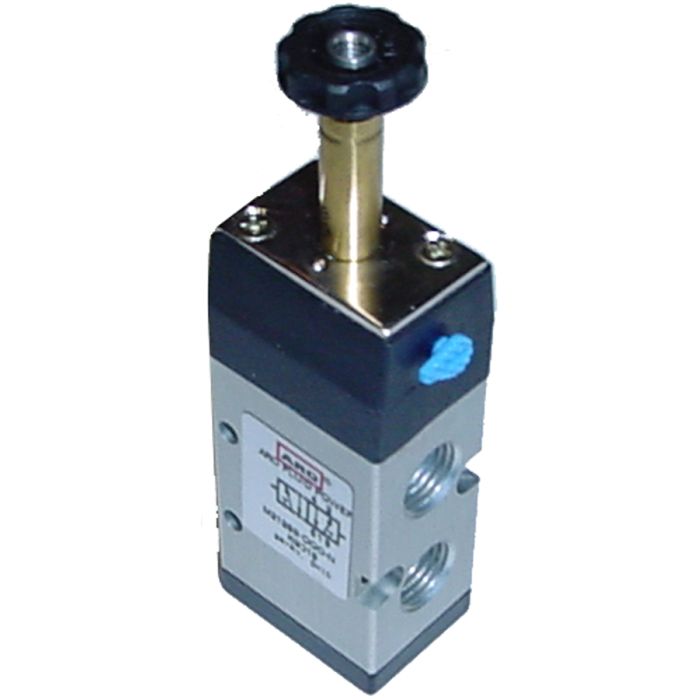

MaxAir Series Solenoid Operated Pneumatic Valves, Up To 167 SCFM

Application	Ideal for packaging, material handling and air motor applications.
Coil	Coils are Class F rated for 100% duty cycle applications at 122°F. AC or DC coils can be interchanged on the same solenoid stem. Each solenoid connector acts as it's own junction box, with molded connectors and gaskets. Coil connectors meet Nema 4 classification.
Features	Compact size with excellent flow capability. Standard Manual Override. Body can be directly plumbed or manifold mounted. Meets NEMA-4 classification.
Flow Rating	Based on 100 PSIG input and 85 PSIG output.
Lubrication	Not required.
Materials	Aluminum body. Buna-N seals.
Minimum Shift Pressure	Single Solenoid Spring Return: 45 PSI. Double Solenoid 2 Position: 20 PSI. Double Solenoid 3 Position Spring Centered: 45 PSI.
Operating Pressure Range	45 to 115 PSI.
Temperature Range	15°F to 122°F.

Products

Model Number	Valve Type	Spool Action	Ports	Flow Rating (SCFM)	CV Factor	Coil	Price	Buy Now
M212SS-000-N	4-way 2-position	Spring Return	1/4 NPT (Side)	26	0.7000	Not Included
M214SS-000-N	4-way 2-position	Spring Return	1/2 NPT (Side)	167	4.3200	Not Included
