Adaptall Male Orfs X Male Bspp C/W Seal 1498318

Specifications

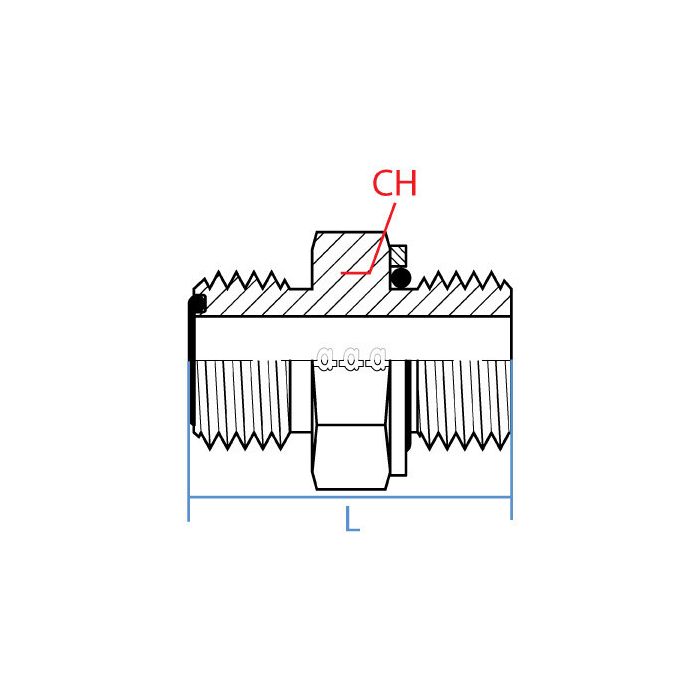

CH Width 16mm	L Length 25.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout G 1/8 - 28	Side 2 Gender M	Side 2 Size 1/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6002-04-02	Product Weight 0.05 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose end that’s 9/16-18 UNF ORFS, will this adapter mate up to it and then give me a G 1/8-28 BSPP male on the other side?

Question by: Ronnie B on Aug 17, 2025, 6:06 PM

On the ORFS side, it is a 1/4 inch male ORFS with 9/16-18 UNF threads, and the other end is a 1/8 inch male BSPP with G 1/8-28 threads, so it matches those two connection types end to end.

Answer by: Customer Support on Aug 18, 2025, 9:47 PM

Reckon this'll work for connecting a 1/4" ORFS line to a 1/8" BSPP port? Just want to make sure before I order.

Question by: Curt K on Apr 2, 2026, 11:34 AM

This Adaptall adapter will indeed connect a 1/4" ORFS (9/16 - 18 UNF thread) to a 1/8" BSPP (G 1/8 - 28 thread) port. It's a straight adapter made of steel, so it should hold up well.

Answer by: Customer Support on Apr 4, 2026, 10:35 AM

What size wrenches am I working with here, and how long is this thing overall?

Question by: Tony H on Nov 29, 2025, 6:05 PM

You've got a 16mm wrench flat to work with, and the overall length runs 25.5mm. It's a compact, straight adapter, so it fits into tighter spaces without a lot of extra stick-out. The ORFS side is 9/16-18 UNF and the BSPP side is G 1/8-28, so make sure both ports on your equipment match those thread specs before you order.

Answer by: Customer Support on Nov 30, 2025, 9:12 PM
