Adaptall Male Orfs X Female Jis 1577943

Specifications

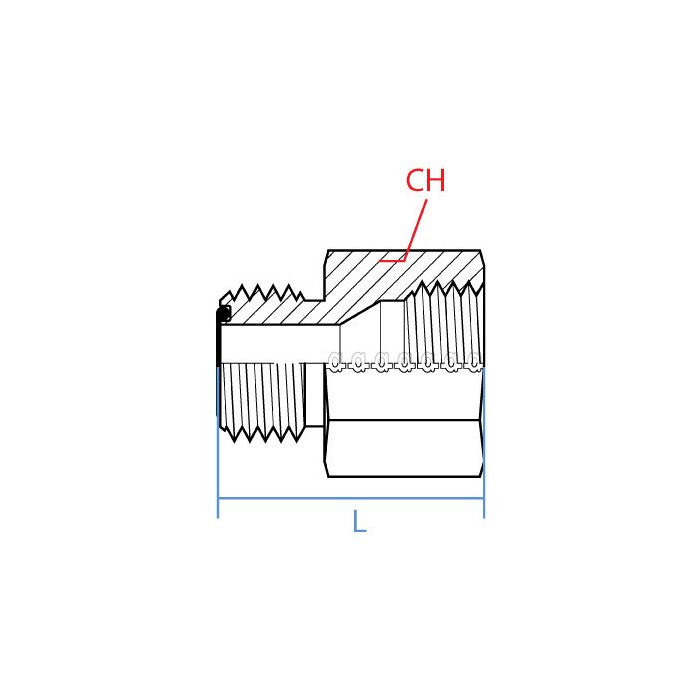

CH Width 19mm	L Length 32.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jis	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6220-04-04	Product Weight 0.99 lbs

Product Questions & Answers 3

Product Questions & Answers

Does this thing actually bridge ORFS and JIS ports, or do I need some kind of intermediate fitting to make that work?

Question by: Stan A on Mar 9, 2026, 8:32 AM

Straight conversion, no intermediate piece needed. One end is a 1/4" male ORFS with a 9/16-18 UNF thread, the other is a 1/4" female JIS running G 1/4-19. You thread the ORFS side into your JIS port and you're done. Steel construction, straight configuration, 32.8mm long so it keeps the overall hydraulic connections fairly compact even in tighter spots.

Answer by: Customer Support on Mar 11, 2026, 7:34 AM

got a hose end that’s 9/16-18 ORFS male, will this adapter let me hook it into a G 1/4-19 JIS female port?

Question by: Wade G on Feb 5, 2026, 7:09 AM

Functionally, it is a straight thread adapter that converts between those two standards: one side is 1/4 inch male ORFS with a 9/16-18 UNF thread, and the other side is 1/4 inch female JIS with a G 1/4-19 thread.

Answer by: Customer Support on Feb 7, 2026, 6:10 AM

So, this here adapter... it'll let me hook up a Japanese fitting to a US one? Just want to make sure before I order it.

Question by: Curt S on Apr 6, 2026, 3:02 PM

Functionally, yes, this adapter allows you to connect a 1/4" male ORFS port (common in the US) to a 1/4" female JIS port (found on some Japanese equipment).

Answer by: Customer Support on Apr 8, 2026, 6:29 AM
