Male Npt X Female Metric Fixed

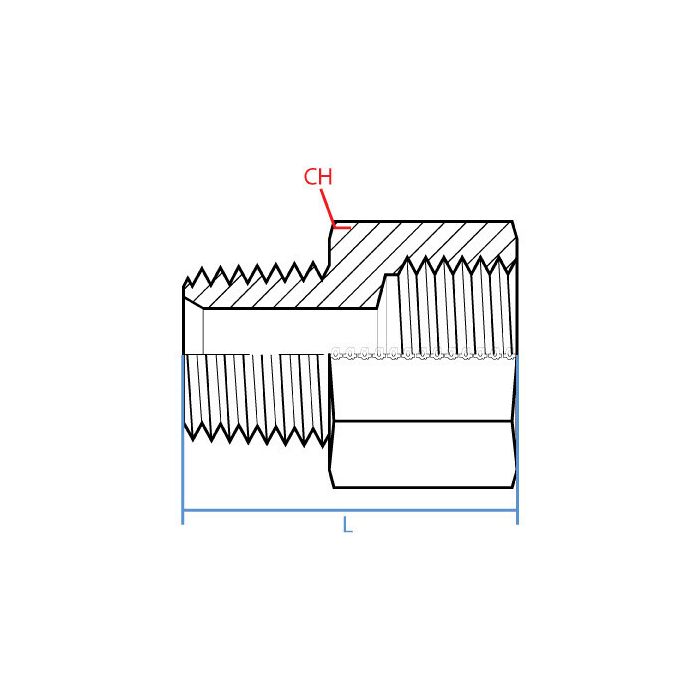

CH Width 14mm	L Length 32.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/8 - 27 NPTF	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Npt	Side 2 Callout M10 X 1.0	Side 2 Gender F	Side 2 Size 10mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9325-02-10X1.0	Product Weight 0.05 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric-ported component on a piece of equipment and need to tie into a 1/8" NPT line. This the right adapter for that?

Question by: Debbie F on Mar 11, 2026, 12:09 PM

That's the situation this part is built for. One end is a 1/8"-27 NPTF male thread, and the other is an M10 x 1.0 female metric port. Straight configuration, so there's no angle involved. Steel construction, 32.2mm overall length, and a 14mm wrench flat for tightening it down proper. If your line and port match those specs, you're good to go.

Answer by: Customer Support on Mar 12, 2026, 7:38 PM
