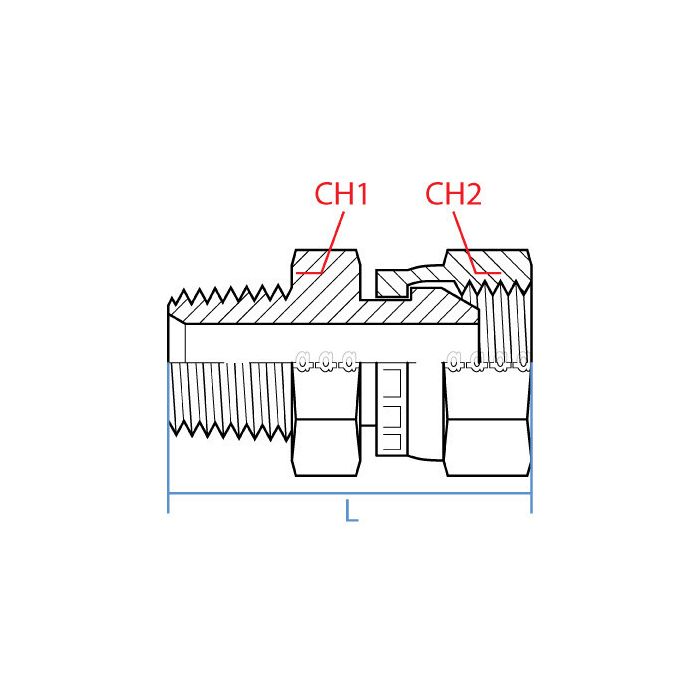

Male Npt X Female Bspp Swivel

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1/4 - 18 NPTF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Npt	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9023-04-06	Product Weight 0.12 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a line running 1/4" NPT male off a pump and need to tie into a 3/8 BSPP female port on a British-made valve block. this fitting work for that?

Question by: Brent B on Jul 3, 2025, 9:25 AM

That's the crossover this fitting handles. The male end is 1/4"-18 NPT and the female swivel end is 3/8"-19 BSPP, so it bridges those two thread standards without any adapter stacking. Steel construction keeps it solid in a working hydraulic line, and the swivel on the female end gives you a little rotational forgiveness when you're making the final connection to that valve block.

Answer by: Customer Support on Jul 4, 2025, 7:48 PM
