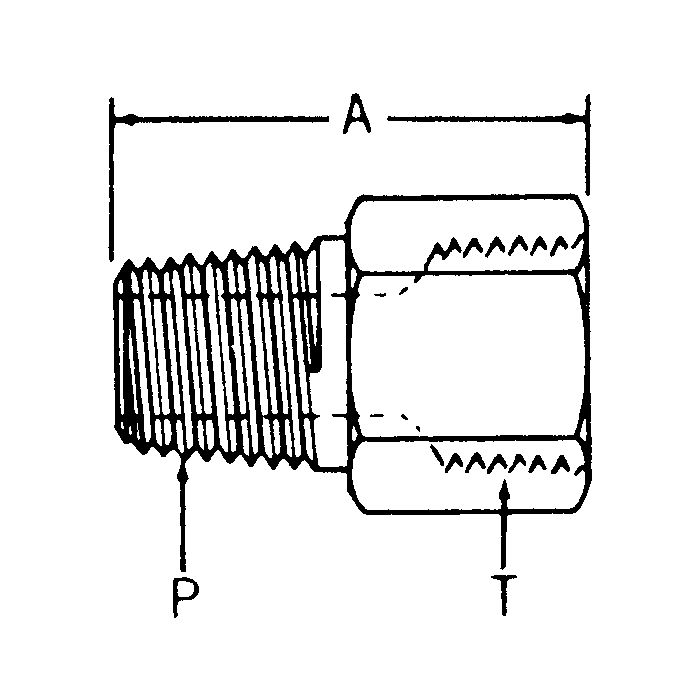

Steel Adapter, 1/2-14 Male NPT To 3/4-16 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

A 1.70	Alternate Part Numbers Alternate Part Number 2246-8-8S, Alternate Part Number A2246-8-8S, Alternate Part Number C1BX36, Alternate Part Number MI-00316625, Alternate Part Number MINO-00028F64294	Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6404-08-08	Thread 1 1/2-14	Thread 2 3/4-16	Thread Sealant No	Product Weight 0.20 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a hydraulic line with a 1/2 NPT male end that needs to connect to a 3/4-16 ORB female port. This the right piece for that?

Question by: Dale S on Aug 26, 2025, 7:15 AM

That's what this adapter is built for. One end is 1/2-14 male NPT and the other is 3/4-16 female SAE O-ring boss, so it bridges those two thread types in a straight configuration. As long as your NPT side is 1/2-14 and your port is a 3/4-16 straight thread O-ring boss, you've got a match.

Answer by: Customer Support on Aug 27, 2025, 8:58 PM

Similar Products

Model Number	Thread 1	Thread 2	A
2246-4-6S	1/4-18	9/16-18	1.36
2246-6-8S	3/8-18	3/4-16	1.45
6404-04-04	1/4-18	7/16-20	1.32
2246-12-12S	3/4-14	1-1/16-12	1.92
2246-16-16S	1-11-1/2	1-5/16-12	1.91
2246-2-4S	1/8-27	7/16-20	1.09
2246-8-10S	1/2-14	7/8-14	1.78
6404-04-06	3/8-18	7/16-20	1.13
6404-05-04	1/2-20	7/16-20	1.39
6404-06-06	3/8-18	9/16-18	1.39
6404-08-08	1/2-14	3/4-16	1.7
