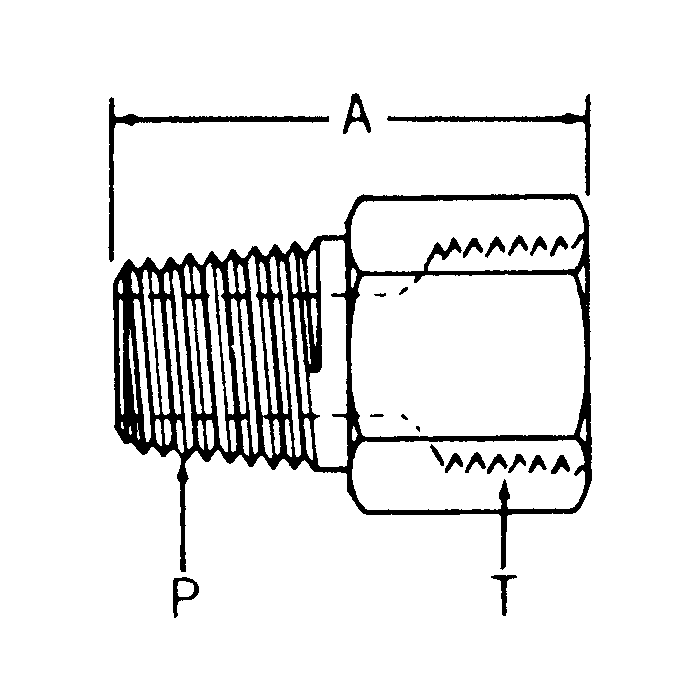

main product photo

Steel Adapter, 1/4-18 Male NPT To 7/16-20 Female SAE O-Ring Boss (Straight Thread O-Ring), Straight

Ask A Question
A
1.32
Alternate Part Numbers
Alternate Part Number 2246-4-4S, Alternate Part Number A2246-4-4S, Alternate Part Number C1BX30
Brand
Brennan Industries Inc
Brand
Brennan Industries
Pack Size
1.00
UOM
EA
Supplier Part Number
6404-04-04
Thread 1
1/4-18
Thread 2
7/16-20
Thread Sealant
No
Product Weight
0.06 lbs
Product Questions & Answers 5

Product Questions & Answers

got a 1/4 NPT male port on a hydraulic block and need to tie into a -4 SAE O-ring female fitting. this the right adapter for that?
Question by: Travis H on Mar 6, 2026, 7:16 PM
That's what this one's built for. One end is 1/4-18 male NPT, which threads into your NPT port on the block. The other end is 7/16-20 female SAE O-ring Boss, which is your standard -4 ORB straight thread connection. Both thread sizes line up with what you described, so you're good to go.
Answer by: Customer Support on Mar 8, 2026, 5:22 PM
got a hose end that’s 7/16-20 ORB female. is this the piece that’ll let me tie into a 1/4-18 NPT port?
Question by: Chad R on Oct 3, 2025, 6:24 PM
It bridges those two thread types in one straight steel adapter. One side is 1/4-18 male NPT and the other side is 7/16-20 female SAE O-Ring Boss (straight thread O-ring), which is commonly called a #4 FORB x #4 MP.
Answer by: Customer Support on Oct 5, 2025, 11:53 AM
Will this adapter work to connect a 1/4 NPT male fitting to a 7/16 SAE O-ring boss?
Question by: Jimmy M on Aug 1, 2025, 1:26 PM
That's exactly what this adapter is for; it allows you to connect a 1/4-18 male NPT to a 7/16-20 female SAE O-Ring Boss (Straight Thread O-Ring).
Answer by: Customer Support on Aug 2, 2025, 4:53 PM
got a line running 1/4 NPT male and need to tie into a port that takes an ORB fitting, will this adapter make that connection work?
Question by: Dwight B on Dec 8, 2025, 4:58 PM
That's exactly what this piece is built for. One end is a 1/4-18 male NPT thread, the other is a 7/16-20 female SAE O-Ring Boss. So if your line terminates in a 1/4 NPT male and your port accepts a 7/16-20 ORB male, this adapter bridges that gap straight through with no angle or offset.
Answer by: Customer Support on Dec 9, 2025, 8:43 PM
trying to hook up a 1/4 npt line to an ORB port, is this the right adapter?
Question by: Travis W on Dec 6, 2025, 10:06 AM
For that hookup, it’s a straight steel adapter with a 1/4-18 male NPT on one side and a 7/16-20 female SAE O-Ring Boss (ORB) straight thread on the other, so it’s meant to bridge NPT to a #4 ORB connection.
Answer by: Customer Support on Dec 7, 2025, 5:23 PM

Similar Products

Model Number Thread 1 Thread 2 A Price Buy Now
2246-4-6S 1/4-18 9/16-18 1.36
2246-6-8S 3/8-18 3/4-16 1.45
6404-04-04 1/4-18 7/16-20 1.32
2246-12-12S 3/4-14 1-1/16-12 1.92
2246-16-16S 1-11-1/2 1-5/16-12 1.91
2246-2-4S 1/8-27 7/16-20 1.09
2246-8-10S 1/2-14 7/8-14 1.78
6404-04-06 3/8-18 7/16-20 1.13
6404-05-04 1/2-20 7/16-20 1.39
6404-06-06 3/8-18 9/16-18 1.39
6404-08-08 1/2-14 3/4-16 1.7
