Adaptall Male Jic X Solid Female Jis 2673732

Specifications

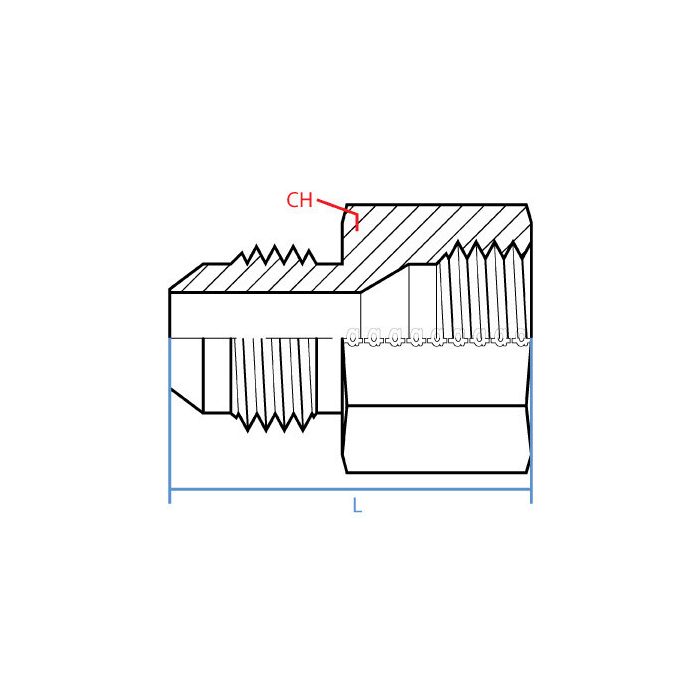

CH Width 22mm	L Length 33.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Jis	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9220-06-04	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a hydraulic line running a 1/4" JIS port on a Japanese-spec valve bank, will this adapter let me tie in a standard JIC hose end on the other side?

Question by: Lee P on Dec 4, 2025, 6:11 AM

That's exactly what this fitting is built for. One end is a 3/8" Male JIC with a 9/16-18 UNF thread, and the other is a 1/4" Solid Female JIS. So yeah, if your valve port is a 1/4" female JIS and your hose assembly terminates in a male JIC, this adapter bridges that connection directly. It's a straight configuration, so no angle changes in the hydraulic connections.

Answer by: Customer Support on Dec 6, 2025, 6:55 AM

Will this here adapter fit a standard JIC setup on one side and JIS on the other? Just wanna make sure before I order.

Question by: Duane K on Aug 28, 2025, 7:18 PM

This adapter will indeed connect a male JIC fitting with a 9/16 - 18 UNF thread to a solid female JIS fitting.

Answer by: Customer Support on Aug 30, 2025, 1:38 PM

got a hose end that’s 9/16-18 UNF male JIC on one side, will this adapter match up with it?

Question by: Rick C on Feb 16, 2026, 7:43 PM

Fit-wise, Side 1 on this adapter is a male JIC with a 9/16 - 18 UNF thread, so it matches that thread callout on your JIC connection.

Answer by: Customer Support on Feb 18, 2026, 10:09 AM
