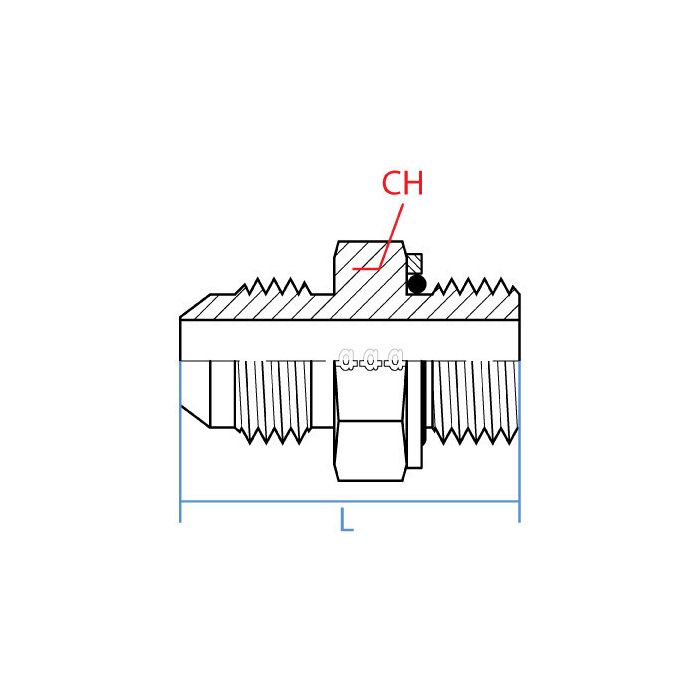

Male Jic X Male Metric W/Seal

CH Width 60mm	L Length 63.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-7/8 - 12 UN	Side 1 Gender M	Side 1 Size 1-1/2"	Side 1 Type Jic	Side 2 Callout M48 X 2.0	Side 2 Gender M	Side 2 Size 48mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9068-24-48	Product Weight 1.25 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a metric port on a pump housing and need to tie into a JIC line coming off the manifold. This fitting work for that kind of hookup?

Question by: Lee W on Aug 15, 2025, 2:30 PM

Straight male-to-male adapters like this one are built exactly for that situation. One end threads into your M48 x 2.0 metric port, the other connects to a 1-7/8-12 UN JIC line on the 1-1/2" side. The seal on the metric end helps keep things tight without needing extra tape or thread compound on that side. At 63.3mm overall length, it sits compact enough to work in most standard pump and manifold setups without fighting for clearance.

Answer by: Customer Support on Aug 16, 2025, 5:30 PM
