Adaptall Male Jic X Male Bspp 2595389

Specifications

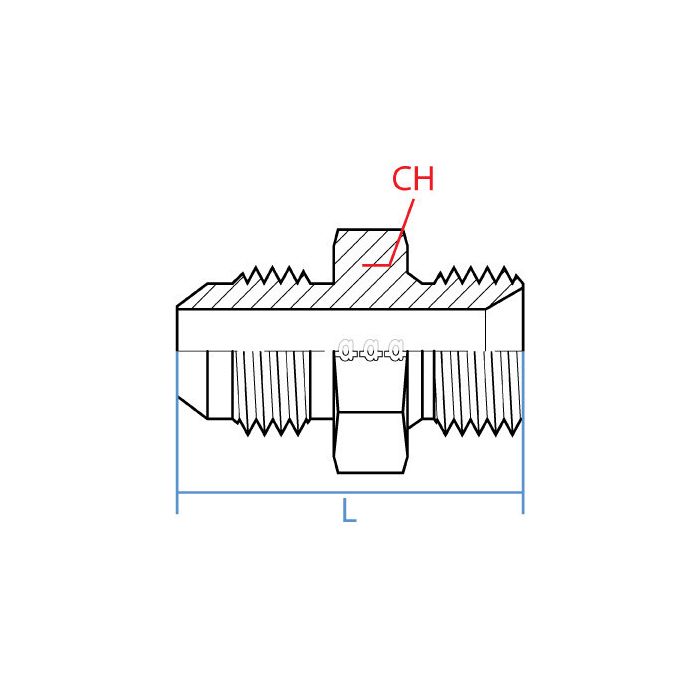

CH Width 28.5mm	L Length 46mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-1/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Jic	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9005-12-06	Product Weight 0.25 lbs

Product Questions & Answers 3

Product Questions & Answers

got a machine running JIC lines on one end and BSPP ports on the other, will this fitting bridge that gap without needing extra adapters in between?

Question by: Jimmy H on Apr 1, 2026, 12:06 PM

Yeah, that's exactly what this one's built for. One end threads into a 3/4" male JIC connection using a 1-1/16-12 UN thread, and the other end connects directly to a 3/8" male BSPP port with a G 3/8-19 thread. Straight body, no extra pieces needed. Steel construction holds up fine in hydraulic line work where you're dealing with real pressure and regular use.

Answer by: Customer Support on Apr 2, 2026, 3:47 PM

got a hose end that’s 3/4 JIC male, and the port on the other side is G 3/8. is this the right little adapter to tie those together?

Question by: Steve B on Jan 26, 2026, 9:24 AM

To match it up, you want Side 1 to be a 3/4 inch male JIC with 1-1/16 - 12 UN threads, and Side 2 to be a 3/8 inch male BSPP with G 3/8 - 19 threads. That is exactly how this straight steel fitting is configured.

Answer by: Customer Support on Jan 27, 2026, 12:13 PM

Will this fitting hold up okay in a hydraulic system that sees pretty high pressure?

Question by: Denise B on Apr 6, 2026, 10:38 AM

Constructed from robust steel, this fitting is designed for demanding hydraulic environments, offering durability and longevity under high-pressure conditions.

Answer by: Customer Support on Apr 8, 2026, 6:44 AM
