Male Jic X Female Jic Swivel

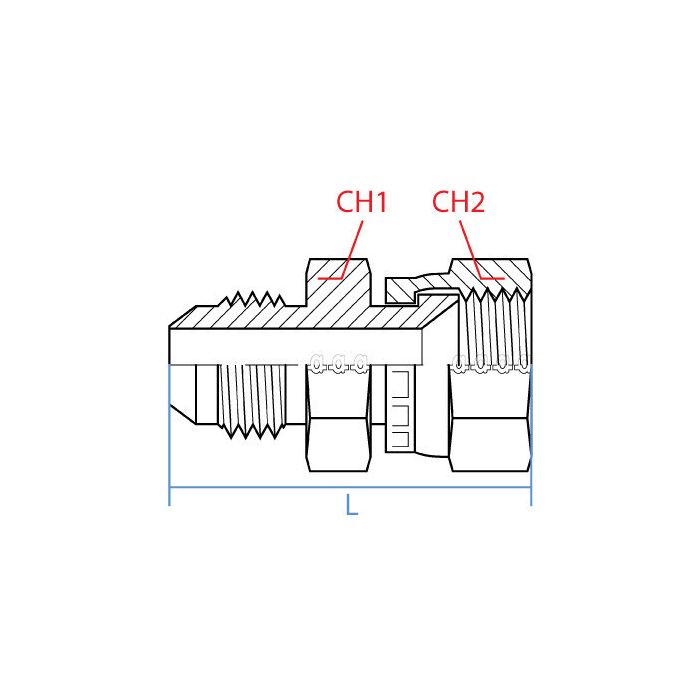

CH1 Width 22mm	CH2 Width 19mm	L Length 43.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 3/4 - 16 UNF	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Jic	Side 2 Callout 9/16 - 18 UNF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Jic	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9020-08-06	Product Weight 0.10 lbs

Product Questions & Answers 2

Product Questions & Answers

fitting goes from 1/2 jic male down to 3/8 jic female swivel, that right? just want to make sure before i order

Question by: Merle F on Apr 1, 2026, 7:41 AM

Correct on both ends. The male side is 1/2" JIC with a 3/4-16 UNF thread, and the female swivel end is 3/8" JIC with a 9/16-18 UNF thread. The swivel on the female end gives you some rotational flexibility during installation, which helps a lot when you're working in a tight spot and can't easily spin the hose or line.

Answer by: Customer Support on Apr 3, 2026, 6:39 AM

got a hose end that’s 3/8 JIC female swivel, and i need to step up to a 1/2 JIC male. is this the right adapter?

Question by: Johnny P on Dec 23, 2025, 5:55 PM

For that kind of step-up, this fitting matches a 3/8 inch JIC female swivel with 9/16 - 18 UNF threads on one side, and a 1/2 inch JIC male with 3/4 - 16 UNF threads on the other.

Answer by: Customer Support on Dec 25, 2025, 9:43 AM
