Male Jic X Fem. Bspp Fixed

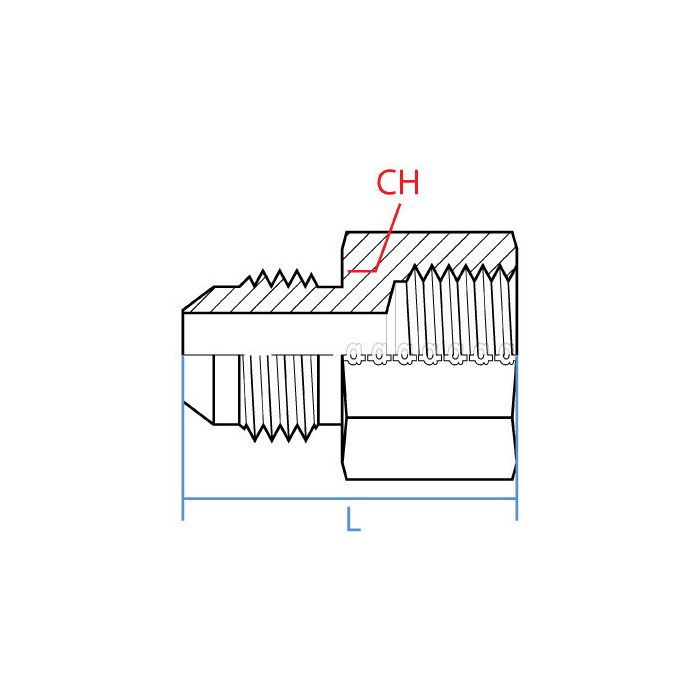

CH Width 19mm	L Length 35mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Jic	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9009-06-04	Product Weight 0.10 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a system running JIC lines that ties into some BSPP ports on a foreign-built power unit. This the kind of adapter that'll bridge that gap without needing extra fittings in between?

Question by: Dale R on Aug 12, 2025, 7:11 PM

Straight crossover work like this is exactly what that adapter handles. One end is a 9/16-18 UNF male JIC thread in 3/8" size, and the other is a G 1/4-19 female BSPP in 1/4" size. Single piece, straight configuration, so you're not stacking anything. Steel construction holds up fine in industrial hydraulic setups. Just confirm your port and line sizes match those callouts before you button it up.

Answer by: Customer Support on Aug 14, 2025, 4:27 PM
