Male Bspt X Female Npt

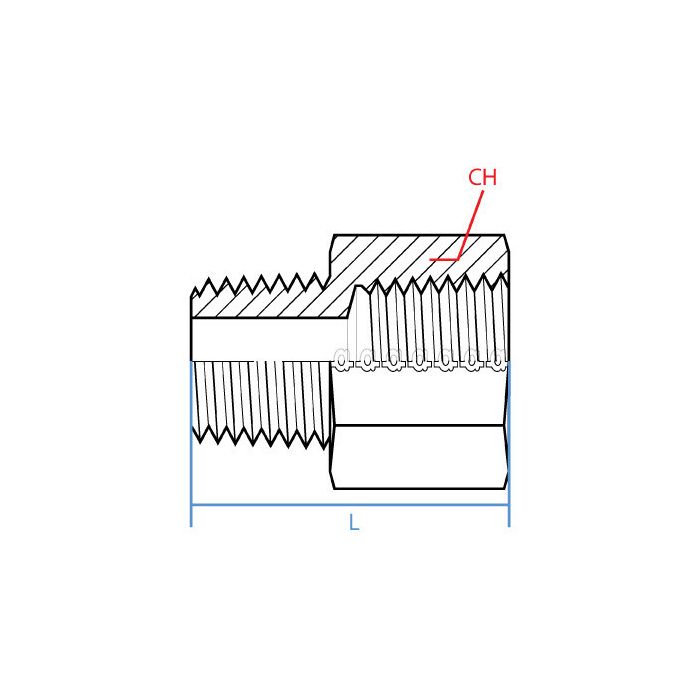

CH Width 35mm	L Length 40.8mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 1 - 11	Side 1 Gender M	Side 1 Size 1"	Side 1 Type Bspt	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9042-16-12	Product Weight 0.35 lbs

Product Questions & Answers 2

Product Questions & Answers

Got a 1-inch BSPT male fitting on my hydraulic line and need to step it down to a 3/4 NPTF female connection. this the right adapter for that?

Question by: Johnny H on Feb 20, 2026, 7:36 PM

That's what this one's built for. The male side is a 1-inch BSPT thread (R 1 - 11 callout) and the female side is 3/4-inch NPTF (3/4 - 14 NPTF callout), so it bridges those two thread standards in a straight configuration. It's made by Adaptall out of steel, so it holds up well in typical industrial hydraulic setups. Should drop right in where you need it.

Answer by: Customer Support on Feb 22, 2026, 4:35 PM

trying to hook a 1-inch BSPT male line into a 3/4 NPTF port, is that what this adapter is for?

Question by: Curt M on Mar 4, 2026, 1:28 PM

Built for thread conversion, it connects a 1 inch BSPT male end (R 1-11) to a 3/4 inch NPTF female end (3/4-14 NPTF) in a straight steel adapter.

Answer by: Customer Support on Mar 6, 2026, 11:50 AM
