Adaptall Male Bspt X Female Bspp Swivel 9032S-08-06

Specifications

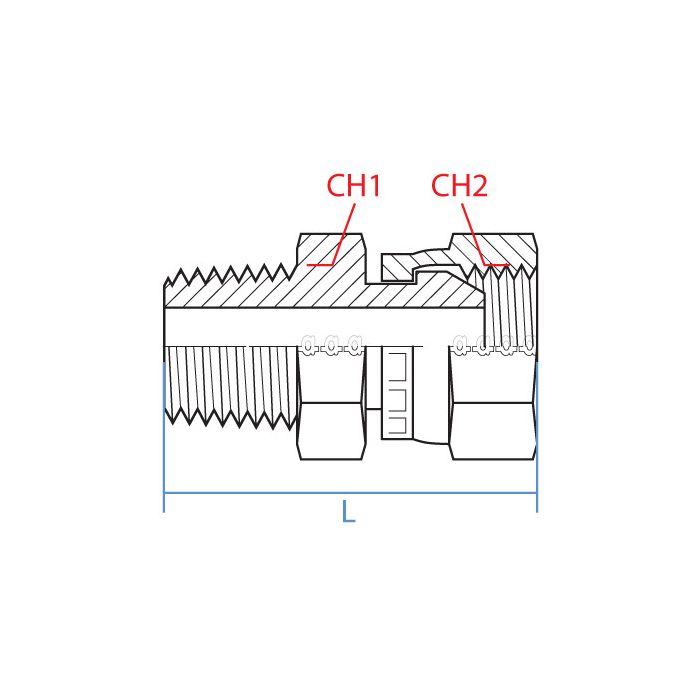

CH1 Width 22mm	CH2 Width 22mm	L Length 47.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout R 1/2 - 14	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Bspt	Side 2 Callout G 3/8 - 19	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9032S-08-06	Product Weight 0.19 lbs

Product Questions & Answers 2

Product Questions & Answers

Is this fitting alright to use if my setup uses British threads?

Question by: Ronnie T on Mar 26, 2026, 10:25 AM

This Adaptall fitting is designed to connect BSPT to BSPP threads, which are both British standard thread types, making it suitable for hydraulic systems using these standards.

Answer by: Customer Support on Mar 28, 2026, 6:52 AM

got a 1/2" BSPT port on my manifold and need to tie into a 3/8" BSPP line, this fitting handle that kind of crossover?

Question by: Roger F on Jan 20, 2026, 1:19 PM

That's exactly the thread combination this fitting covers. One end is a 1/2" male BSPT (R 1/2-14) and the other is a 3/8" female BSPP swivel (G 3/8-19), so you're bridging both the size difference and the thread form difference in one piece. The swivel on the female end also helps if your line doesn't want to rotate freely during tightening.

Answer by: Customer Support on Jan 21, 2026, 6:06 PM
