Adaptall Male Bspp X Female Npt 2606102

Specifications

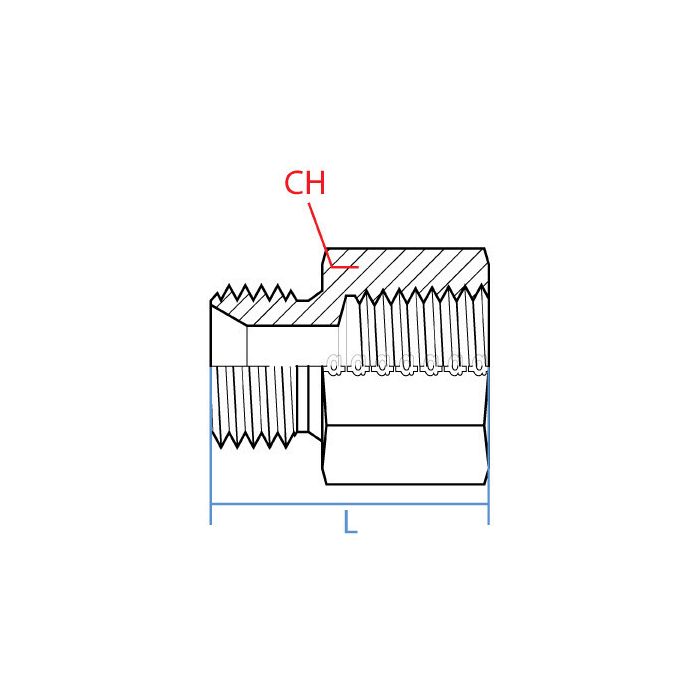

CH Width 22mm	L Length 34.9mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/4 - 19	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Bspp	Side 2 Callout 3/8 - 18 NPTF	Side 2 Gender F	Side 2 Size 3/8"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9035-04-06	Product Weight 0.15 lbs

Product Questions & Answers 3

Product Questions & Answers

Got a piece of equipment with a 1/4" BSPP male port and I need to tie into 3/8" female NPT line, this the right adapter for that?

Question by: Ralph A on Nov 14, 2025, 12:51 PM

That's what this fitting is built for. One end is 1/4" male BSPP (G 1/4 - 19 thread) and the other is 3/8" female NPT (3/8 - 18 NPTF). Steel construction, straight configuration, so there's no angle to account for when you're routing your line. Wrench flat comes in at 22mm, and the overall length is just under 35mm, so it's pretty compact if clearance is tight.

Answer by: Customer Support on Nov 16, 2025, 6:15 AM

trying to hook a G 1/4 BSPP line into a 3/8 NPT port. is that what this adapter’s for?

Question by: Howard G on May 6, 2025, 9:20 AM

It bridges those two thread styles in a straight steel adapter, with a 1/4 inch male BSPP on Side 1 (G 1/4 - 19) and a 3/8 inch female NPTF on Side 2 (3/8 - 18 NPTF).

Answer by: Customer Support on May 7, 2025, 5:46 PM

Will this fitting work to connect a BSPP fitting to an NPT fitting?

Question by: Warren W on Jan 20, 2026, 6:19 AM

Yes, this straight steel adapter is designed to connect a 1/4" male BSPP connection to a 3/8" female NPT connection.

Answer by: Customer Support on Jan 21, 2026, 7:38 AM
