Male Bspp X Female Bspp Swivel

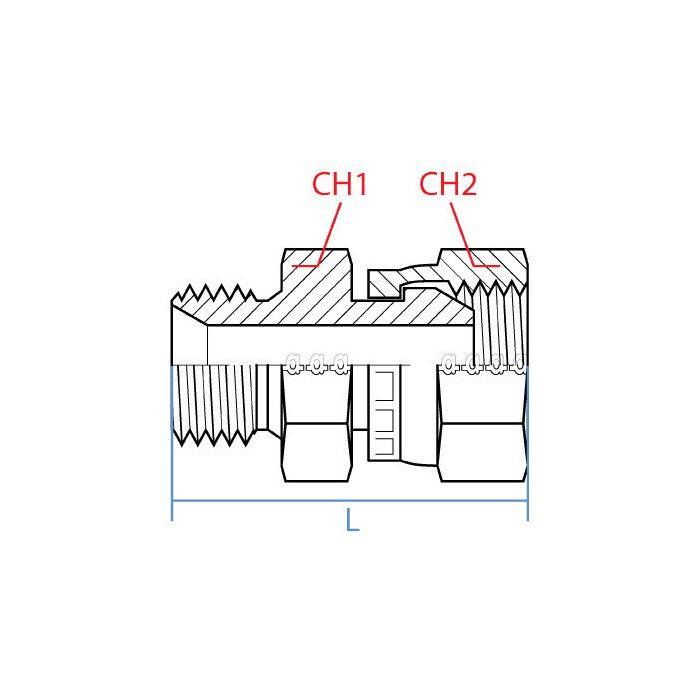

CH1 Width 14mm	CH2 Width 19mm	L Length 30.5mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout G 1/8 - 28	Side 1 Gender M	Side 1 Size 1/8"	Side 1 Type Bspp	Side 2 Callout G 1/4 - 19	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9015-02-04	Product Weight 0.08 lbs

Product Questions & Answers 2

Product Questions & Answers

got a hose with a G 1/4-19 female end, will this swivel let me step it down to G 1/8-28 male?

Question by: Dustin R on Oct 15, 2025, 9:38 AM

For matching BSPP threads, it’s set up exactly that way. Side 2 is a female BSPP with a G 1/4 - 19 callout, and side 1 is a male BSPP with a G 1/8 - 28 callout, so it adapts from 1/4 BSPP female to 1/8 BSPP male in a straight swivel adapter.

Answer by: Customer Support on Oct 17, 2025, 6:47 AM

What size threads does this thing use?

Question by: Neil M on Jul 4, 2025, 3:10 PM

It uses a G 1/8 - 28 male BSPP connection on one side and a G 1/4 - 19 female BSPP connection on the other.

Answer by: Customer Support on Jul 6, 2025, 11:02 AM
