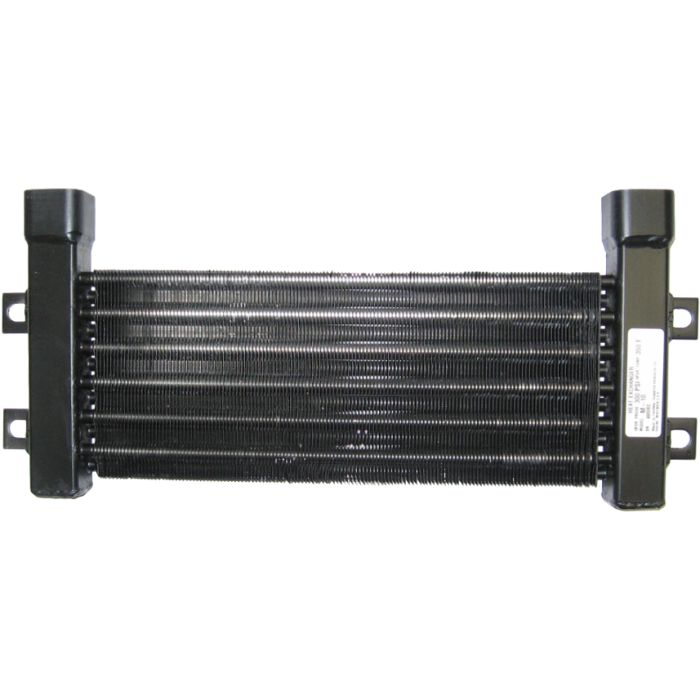

M & MR Series Air Cooled Mobile Heat Exchangers, Up To 90000 BTU/hr Heat Removal
Features |
High strength construction, rugged steel manifolds. Optional internal by-pass valves eliminate piping and reduce costs. Heat removal to 90,000 BTU/Hr. Oil flows up to 100 GPM. NPT ports are standard (SAE Straight Thread and Male JIC 37° flare ports are optional). |
Materials |
Copper tubes. Aluminum fins. Steel manifolds, connections, turbulators, relief valve.. |
Maximum Operating Temperature |
400°F. |
Pressure Rating |
300 PSI Operating. 300 PSI Test. |
Products
| Model Number | Bypass Spring | A | B | C | D | E | F | G | Ports | Face Area | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M-15-S | 8 | 14.5 | 10.88 | 18.22 | 16.72 | 5.5 | 19.72 | SAE-16 | 0.81 |
|
||
| M-20 | 12 | 14.5 | 14.88 | 18.22 | 16.72 | 9.5 | 19.72 | 1 NPT | 1.21 |
|
||
| M-30 | 24 | 19.5 | 26.88 | 23.22 | 21.72 | 21.5 | 24.72 | 1-1/4 NPT | 3.25 |
|
