Adaptall M.Jic X F.Flat-Face Bspp Swiv. 2670018

Specifications

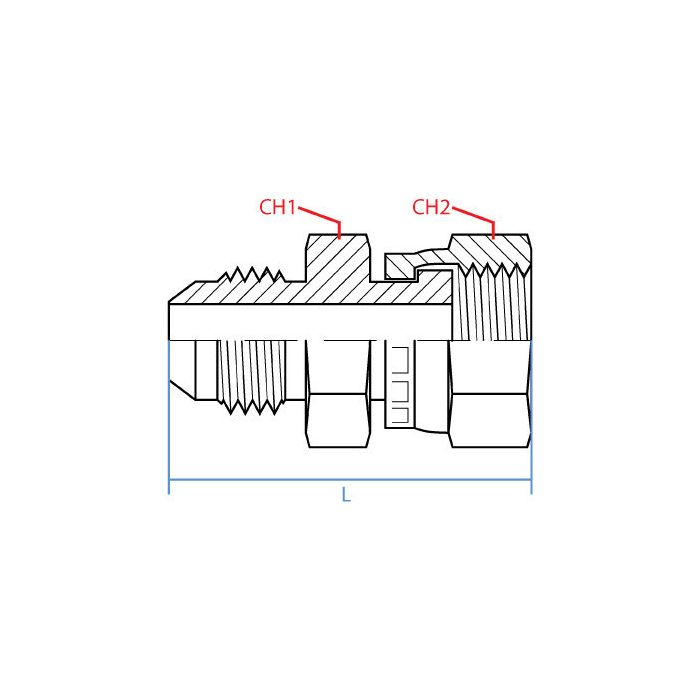

CH1 Width 18mm	CH2 Width 19mm	L Length 35.7mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 7/16 - 20 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Jic	Side 2 Gender F	Side 2 Size 1/4"	Side 2 Type Hiab	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9210-04-04	Product Weight 0.09 lbs

Product Questions & Answers 3

Product Questions & Answers

got a hose assembly running JIC on one end and flat-face BSPP on the other, this the right adapter to bridge them?

Question by: Donna H on Oct 20, 2025, 9:15 PM

For a straight inline connection between a 1/4" male JIC and a 1/4" female flat-face BSPP port, yes, that's exactly what this fitting handles. The male JIC side runs a 7/16-20 UNF thread, and the female end is the flat-face BSPP swivel type. The swivel feature lets you rotate the fitting into position during assembly without putting a twist in the hose line, which saves a lot of headache on tight builds.

Answer by: Customer Support on Oct 22, 2025, 11:53 AM

Just want to make sure, this fitting will let me hook up a JIC line to a flat-face BSPP, right?

Question by: Steve B on Apr 4, 2026, 6:05 PM

That's correct. This Adaptall adapter is designed to connect a 1/4" male JIC fitting to a 1/4" female flat-face BSPP swivel.

Answer by: Customer Support on Apr 6, 2026, 10:43 AM

trying to hook a 1/4 jic hose up to a flat-face bspp port, is this the right adapter?

Question by: Dustin O on Apr 28, 2025, 2:00 PM

For that kind of mix-and-match connection, it bridges a 1/4 inch male JIC end with 7/16-20 UNF threads to a 1/4 inch female flat-face BSPP swivel end, so you can mate JIC on one side and a flat-face BSPP connection on the other.

Answer by: Customer Support on Apr 30, 2025, 6:22 AM
