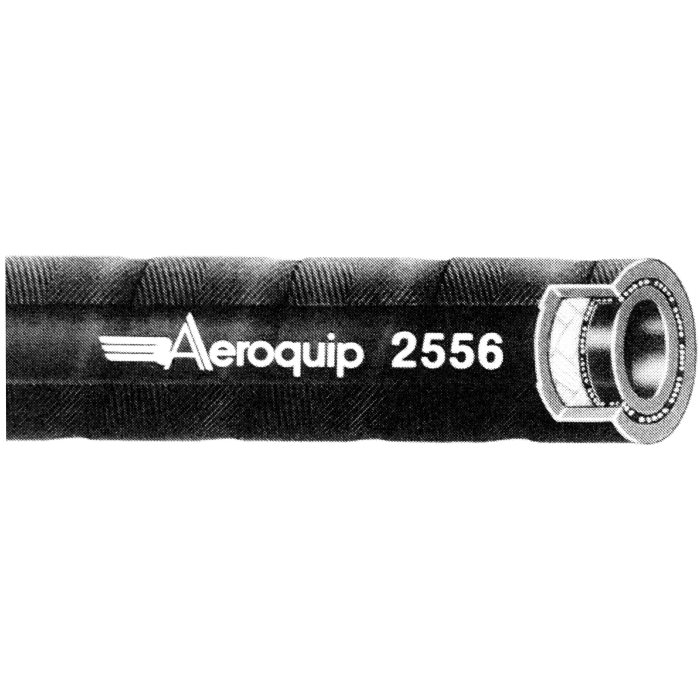

Air & Multi-Purpose Textile Braid Low Pressure Socketless Black Hose
Application |
For gasoline, fuel and lubricating oils, air and water. Not recommended for marine fuel lines, Not recommended for hydraulic impulse applications, and is Not approved for air brake applications. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
Synthetic rubber tube, textile braid reinforcement, black synthetic rubber cover. |
Temperature Range |
-40°F to +212°F. Water not to exceed +150°F. Air not to exceed +160°F. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| 2556-4RL | 0.25 | 0.49 | 360 | 1.5 | 28 | 850 |
|
||
| 2556-6RL | 0.38 | 0.62 | 300 | 2.75 | 28 | 560 |
|
||
| 2556-10 | 0.63 | 0.97 | 250 | 6 | 10 | 450-475 |
|
||
| 2556-12 | 0.75 | 1.09 | 250 | 7 | 10 | 367 |
|
||
| 2556-8 | 0.5 | 0.75 | 300 | 3.5 | 28 | 600 |
|
