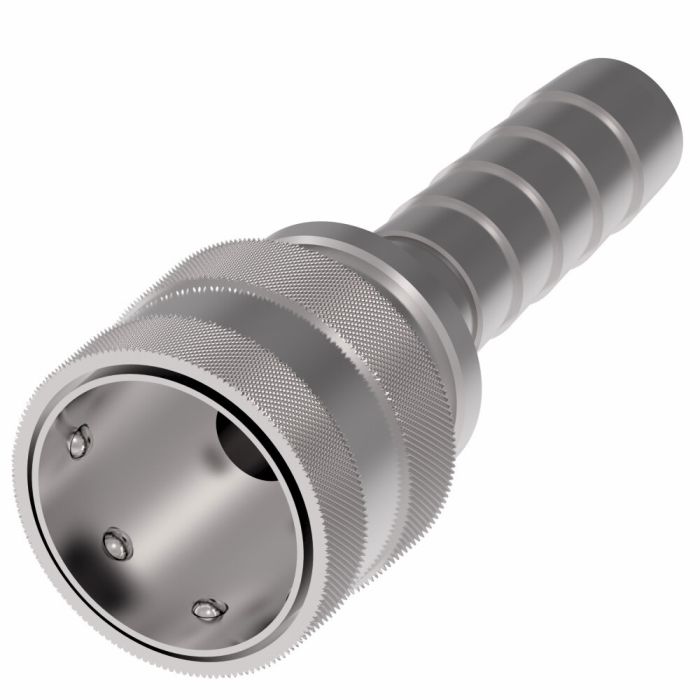

Danfoss / Eaton Hansen and Gromelle LL3S22 Cplng,STSERIES Stainless Steel Barb Male 3/8 IN Body Size LL3S22

Specifications

Application Fluid Transfer, Chemical, Food and Beverage, Injection Molding, Marine, Medical, Pressure Washing, Steam Cleaning	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Type 1 Push to Connect	End Type 2 Line/Hose/Tube	Features Quick connect and disconnect\|No need for special tools\|Exceeds ISO 16028 operating pressures	Flow Rate1 15 gallons per minute	ICC Quick Disconnect Couplings	Internal Connection Type Ball Lock	Item Type Female Half	Language English	Minimum Working Temperature -40	Net Pack Quantity Units EA	Product Material Stainless Steel	Product Width 1.16	Safety locking Mechanism None	Seal Material Buna-N	Sub Brand Hansen	Supplier Part Number LL3S22	Valve Type Straight Thru	Product Weight 0.18 lbs

Product Questions & Answers 3

Product Questions & Answers

got a 3/8 body size line already, will this LL3S22 match up or am i off a size?

Question by: Frank W on Dec 26, 2025, 9:31 AM

Fit-wise, LL3S22 is a 3/8 inch body size female half coupling with a push-to-connect end for line, hose, or tube. If you are matching by body size and you need the female half in that 3/8 size, it lines up with that requirement.

Answer by: Customer Support on Dec 28, 2025, 7:29 AM

Will this here coupling hold up if I'm transferring chemicals with it? Just wanna make sure it can handle that kind of stuff.

Question by: Brett H on Aug 14, 2025, 3:03 PM

This stainless steel coupling is designed for chemical processing applications, as well as fluid transfer, food and beverage, and other uses.

Answer by: Customer Support on Aug 16, 2025, 10:32 AM

got a food processing line that runs wash-down cycles pretty regular, would stainless steel hold up alright for that kind of environment, or is this more of a light-duty piece?

Question by: Ricky P on Nov 30, 2025, 7:59 PM

Stainless steel is a solid choice for wash-down environments. This coupling is built from stainless and is rated for food and beverage applications, so repeated exposure to moisture and cleaning cycles is well within its intended use. The Buna-N seals are also a common choice for food-grade fluid handling, so you're not working against the material here.

Answer by: Customer Support on Dec 2, 2025, 6:49 AM
