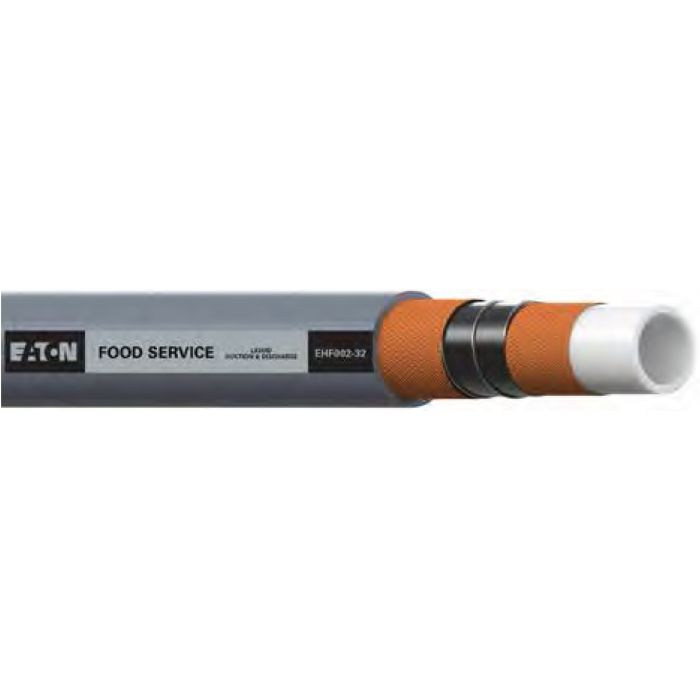

Liquid Food Suction & Discharge Hose
Application |
For suction and discharge of milk, vegetable oil and beverages. Please review application requirements and limitations found in |
Construction |
Vegetable oil-resistant NBR tube, FDA approved material; High-tensile synthetic textile with a single steel helical wire reinforcement; Oil, abrasion, ozone, and weather resistant synthetic rubber cover. |
Fitting Attachment |
Band-It® Jr.Preformed Clamps. Band and Buckle. |
Fittings |
Cam and Groove. Combination Nipples |
Fittings & Fitting Attachment Suggestions |
• Cam and groove • Combination nipple |
Temperature Range |
-40°F to +176°F |
Products
| Model Number | Color | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Vacuum Service | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| EHF002-48GY-100 | Gray | 3 | 3.66 | 150 | 28 | 100 |
|
||
| EHF002-24GY-100 | Gray | 1.5 | 2.06 | 150 | 28 | 100 |
|
||
| EHF002-32GY-100 | Gray | 2 | 2.6 | 150 | 28 | 100 |
|
||
| EHF002-64GY-100 | Gray | 4 | 4.67 | 150 | 28 | 100 |
|
