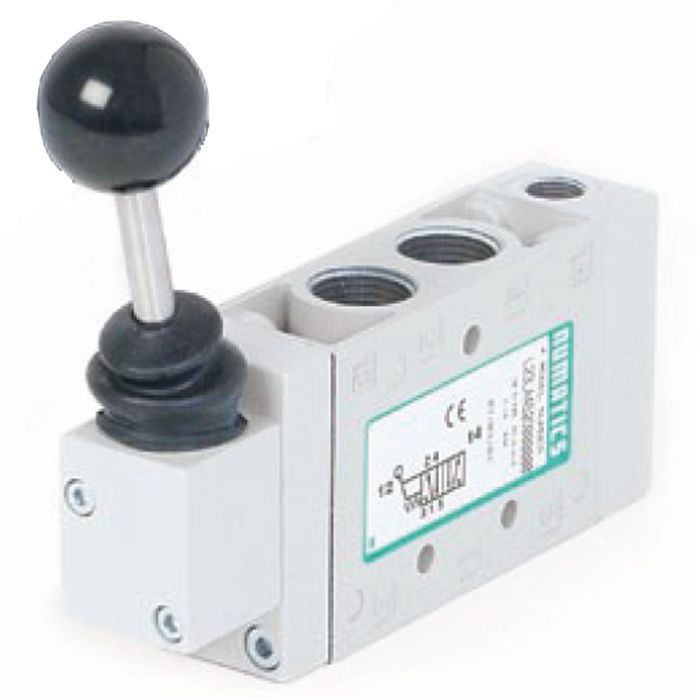

L2 Series 4-Way Manually Operated Pneumatic Valves, Up To 79 SCFM
Features |
Solenoid air pilot or air pilot actuated. Hand-lever valves available. DIN plug-in solenoid and plug connector with indicator light. In-line or manifold mounted. Integral speed control available. |
Lubrication |
Unlubricated or lubricated service. |
Operating Pressure Range |
28'' Hg Vacuum to 150 PSIG |
Shift Pressure |
14.5 to 150 PSIG |
Temperature Range |
-10°F to +115°F |
Products
| Model Number | Valve Type | Spool Action | Ports | Flow Rating (SCFM) | CV Factor | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| L22LA452O000000 | Hand Lever | Spring Return | 1/4 | 79 | 1.7000 |
|
|
| L22LD452O000000 | Hand Lever | Detent | 1/4 | 79 | 1.7000 |
|
