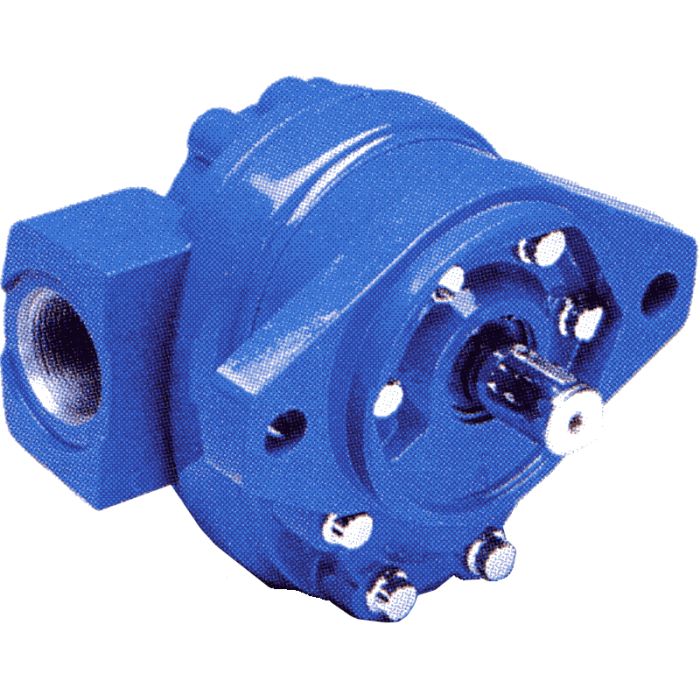

L2 Series Gear Pumps, Up To 26 GPM @ 1800 RPM, Up To 3600 PSI, Up To 3500 RPM

Pressure Limit	Outlet: Varies with displacement (See table below). Inlet: Maximum inlet vacuum at operating condition 6.0 In. Hg.
Rated Speed	Varies with displacement (See table below).
Temperature Range	Minimum Operating -20°F. Maximum Continuous 225°F.

Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating
25501-RSC	1.55	12	2-Bolt SAE B	7/8 Straight Keyed	SAE-20 Side Inlet, SAE-12 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3600
25503-RSA	2.05	15.9	2-Bolt SAE B	13 Tooth SAE B Splined	SAE-20 Side Inlet, SAE-12 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	2750 RPM	3600
25504-LSC	2.33	18.1	2-Bolt SAE B	7/8 Straight Keyed	SAE-20 Side Inlet, SAE-12 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	2750 RPM	3600
25504-RSC	2.33	18.1	2-Bolt SAE B	7/8 Straight Keyed	SAE-20 Side Inlet, SAE-12 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	2750 RPM	3600
