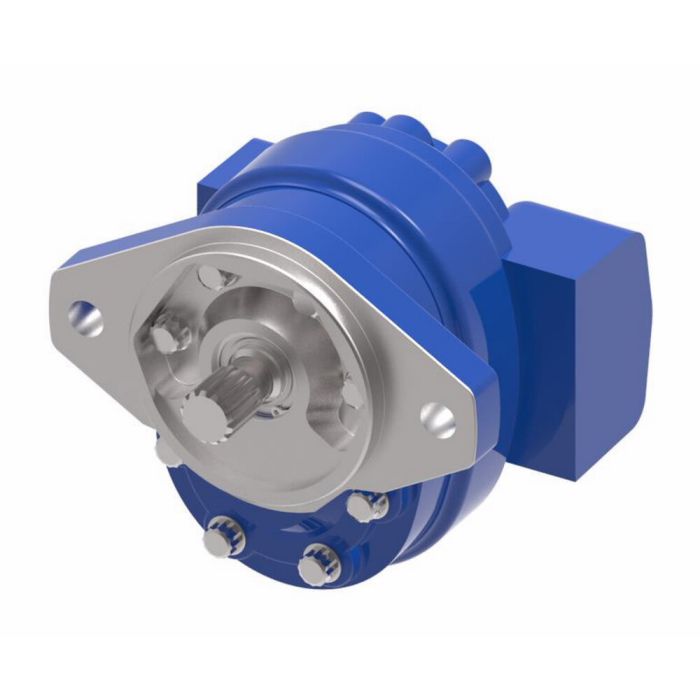

L2 Series Gear Pump, 2.05 cu in/rev, 2-Bolt SAE B Mounting Flange, 13 Tooth SAE B Splined Shaft, SAE-20 Side Inlet, SAE-12 Side Outlet Ports, CW Rotation.

Application Agricultural, Civil Engineering, Primary metals, Material handling, Speciality Construction, Metal Forming, Natural Resources	Configuration 32	Displacement 2.05	Displacement 2.05	Brand Danfoss – Hydraulics	Brand Danfoss Power Solutions	Pack Size 1.00	UOM EA	Features Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	Identification Standard	Minimum Working Temperature -20	Mount 2-Bolt SAE B	Mount 2-Bolt SAE B	Ports SAE-20 Side Inlet, SAE-12 Side Outlet	Ports SAE-20 Side Inlet, SAE-12 Side Outlet	Pressure Rating 3600	Rated Flow 15.90	Rated Flow 15.9	Rotation CW	Shaft 13 Tooth SAE B Splined	Shaft 13 Tooth SAE B Splined	Special Features None	Speed Rating 2750 RPM	Speed Rating 2750 RPM	Supplier Part Number 25503-RSA	Alternate Part Numbers Alternate Part Number C1JX98	Product Weight 14.00 lbs

Product Questions & Answers 3

Product Questions & Answers

What kind of stuff is this pump good for?

Question by: Judy K on Jan 8, 2026, 3:58 PM

This L2 series gear pump works in agricultural equipment, civil engineering, material handling, and specialty construction, among other applications.

Answer by: Customer Support on Jan 10, 2026, 6:45 AM

got a 2-bolt SAE B mount and a 13-tooth SAE B spline on my setup. is this pump the right match, and which way does it spin?

Question by: Terry C on Jun 8, 2025, 6:07 AM

It matches a 2-Bolt SAE B mounting flange and a 13 Tooth SAE B splined shaft. Rotation on this model is CW.

Answer by: Customer Support on Jun 9, 2025, 4:42 PM

Got a machine running a 2-bolt SAE B setup with a 13-tooth splined shaft, this pump gonna drop right in without any adapter nonsense?

Question by: Chad H on May 9, 2025, 3:07 PM

Straight bolt-up on a standard 2-bolt SAE B flange, and the 13-tooth SAE B splined shaft matches that mount pattern exactly. Port side gives you an SAE-20 inlet and SAE-12 outlet, both side-ported. Long as your existing hydraulic connections lines up to those port sizes, you're not looking at any adapter work on the mechanical end.

Answer by: Customer Support on May 11, 2025, 6:00 AM

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Features	Speed Rating	Pressure Rating
25501-RSC	1.55	12	2-Bolt SAE B	7/8 Straight Keyed	SAE-20 Side Inlet, SAE-12 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	3000 RPM	3600
25503-RSA	2.05	15.9	2-Bolt SAE B	13 Tooth SAE B Splined	SAE-20 Side Inlet, SAE-12 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	2750 RPM	3600
25504-LSC	2.33	18.1	2-Bolt SAE B	7/8 Straight Keyed	SAE-20 Side Inlet, SAE-12 Side Outlet	CCW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	2750 RPM	3600
25504-RSC	2.33	18.1	2-Bolt SAE B	7/8 Straight Keyed	SAE-20 Side Inlet, SAE-12 Side Outlet	CW	Reduced noise and vibration\|Improved volumetric and mechanical efficiency\|Field reversible pump direction	2750 RPM	3600
