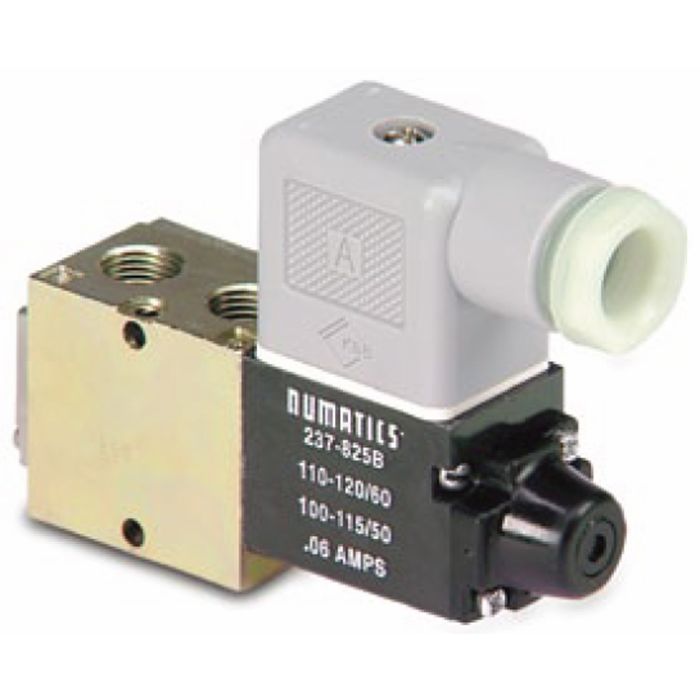

L01 Series 4-Way Solenoid Operated Pneumatic Valves, Up To 9.3 SCFM
Features |
Direct solenoid actuated. DIN plug-in solenoid with indicator light available. Integral speed control available. In-line or manifold mounted. Designed to meet the requirements of NEMA 4 / IP65. |
Lubrication |
Unlubricated or lubricated service |
Operating Pressure Range |
28'' Hg to 150 PSIG |
Products
| Model Number | Valve Type | Ports | Flow Rating (SCFM) | CV Factor | Coil | Housing | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|
| L01SA4592000030 | Single Direct Solenoid, Spring Return W/Flush Non-locking Override | 1/8 | 9.3 | 0.2000 | 110-120/50-60 VAC |
|
||
| L01SA4594000061 | Single Direct Solenoid, Spring Return W/Flush Non-locking Override | 1/8 | 9.3 | 0.2000 | 24 VDC |
|
