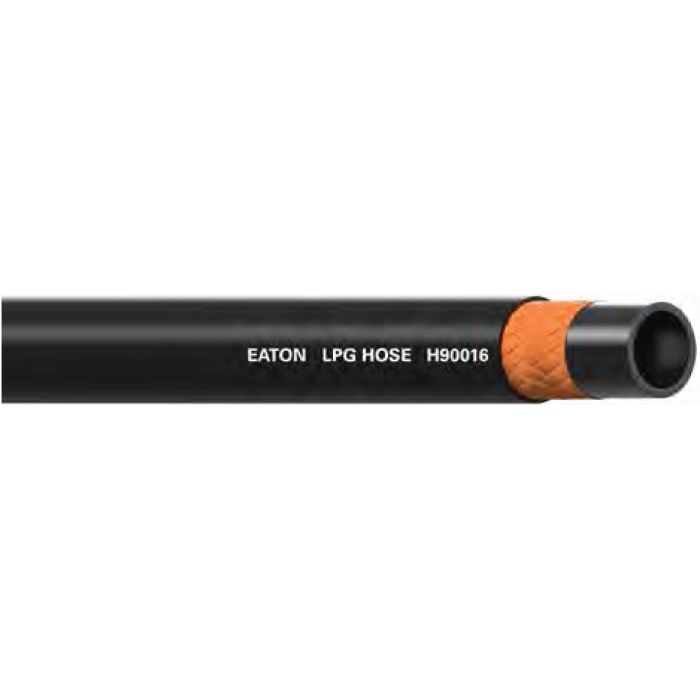

L.P. Gas Hose, UL 21 Approved
Application |
• For transfer and delivery of propane and butane • Transfer of natural gas in open, well ventilated areas (1 psig max. working pressure). Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
Construction |
Tube: Nitrile; Reinforcement: Textile braid; Cover: Pin-pricked vinyl nitrile |
Fittings & Fitting Attachment Suggestions |
• “U” Series • Swaged or crimp male couplings |
Temperature Range |
-40°F to +140°F. Hose is capable of this rating. LP-Gas should never be elevated above 100°F. |
Warning |
LPG is a very hazardous liquid or gas and should be handled with maximum care to prevent leakage. Since the gas is heavier than air, it may flow along the ground if it escapes and cause an explosion or a fire. No leakage should ever be tolerated. |
Products
| Model Number | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Reel Qty (ft) | Price | Buy Now |
|---|---|---|---|---|---|---|---|
| H90004-500R | 0.25 | 0.59 | 350 | 500 |
|
||
| H90006-500R | 0.38 | 0.73 | 350 | 500 |
|
||
| H90008-500R | 0.5 | 0.92 | 350 | 500 |
|
