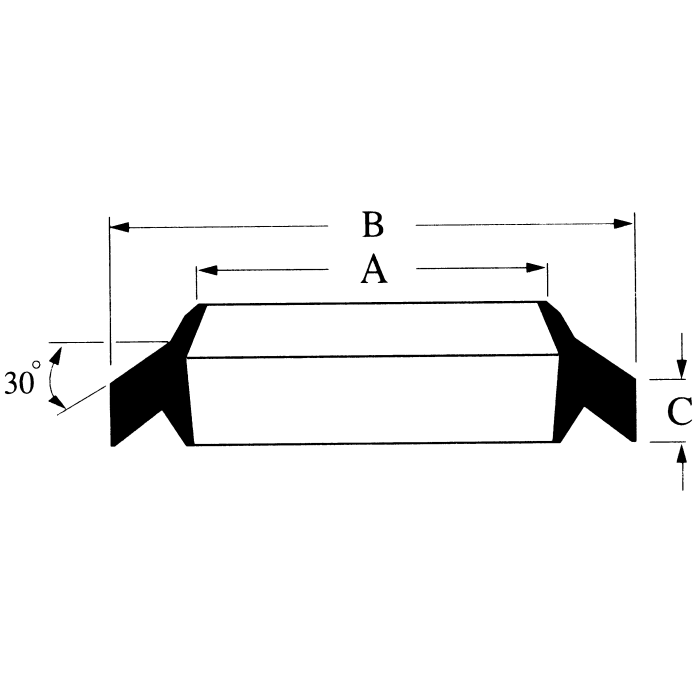

KW Style Urethane Wiper Ring, 2.00 Inch Rod Diameter, 2.38 Inch Wiper OD, 0.190 Inch Base Thickness

Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Rod Diameter A 2	Supplier Part Number KW-2000	Thickness (in) 0.19	Product Weight 0.02 lbs	Alternate Part Numbers Alternate Part Number C1DD14, Alternate Part Number MI-01810418, Alternate Part Number MINO-00407Q30191

Product Questions & Answers 2

Product Questions & Answers

got a cylinder with a 2 inch rod, is this KW-2000 wiper the right size or am i off a bit

Question by: Gary F on Mar 20, 2026, 6:27 PM

Fit comes down to the rod diameter and the wiper outside diameter. This KW style wiper ring is sized for a 2.00 inch rod, with a 2.38 inch wiper OD and a 0.190 inch base thickness.

Answer by: Customer Support on Mar 22, 2026, 8:46 AM

Got a cylinder rod that's 2 inches across, this wiper ring gonna fit right, or do I need to double-check anything before ordering?

Question by: Lee J on Nov 14, 2025, 4:38 PM

For a 2.00 inch rod, this is the correct size. The wiper OD measures 2.375 inches and the base thickness comes in at 0.190 inches, so those are the numbers to cross-reference with your housing bore and groove depth before you drop it in. As long as your groove dimensions match up, you should be good to go.

Answer by: Customer Support on Nov 16, 2025, 6:58 AM

Similar Products

Model Number	Rod Diameter A	Wiper O.D. B	Thickness (in)
KW-1500	1.5	1.875	0.190
KW-0750	0.75	1.125	0.190
KW-0875	0.875	1.25	0.190
KW-1000	1	1.375	0.190
KW-1250	1.25	1.625	0.190
KW-1375	1.375	1.75	0.190
KW-1750	1.75	2.125	0.190
KW-2000	2	2.375	0.190
KW-2500	2.5	3	0.250
