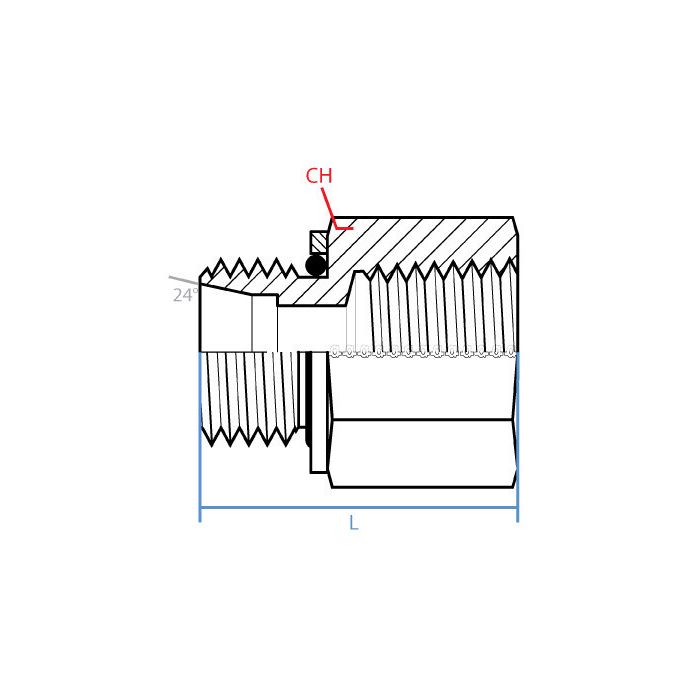

Kobelco (Sealed) X Female Npt

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout M30 X 1.5	Side 1 Gender M	Side 1 Size L22 SPECIAL	Side 1 Type Kobelco	Side 2 Callout 3/4 - 14 NPTF	Side 2 Gender F	Side 2 Size 3/4"	Side 2 Type Npt	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 9635S-30X1.5-L22-12	Product Weight 0.46 lbs

Product Questions & Answers 1

Product Questions & Answers

Got a Kobelco port on a piece of equipment running M30 x 1.5 threads with that L22 Special setup. Will this adapter get me over to a standard 3/4" NPT female fitting without any kind of thread adapter in between?

Question by: Bobby K on Feb 3, 2026, 2:21 PM

That's exactly what this piece is built for. One end is a sealed Kobelco male port in M30 x 1.5 with the L22 Special configuration, and the other end is a 3/4-14 NPTF female thread. So yeah, you're going straight from that Kobelco port into a standard 3/4" NPT female connection in one shot, no extra adapters needed.

Answer by: Customer Support on Feb 5, 2026, 2:16 PM
