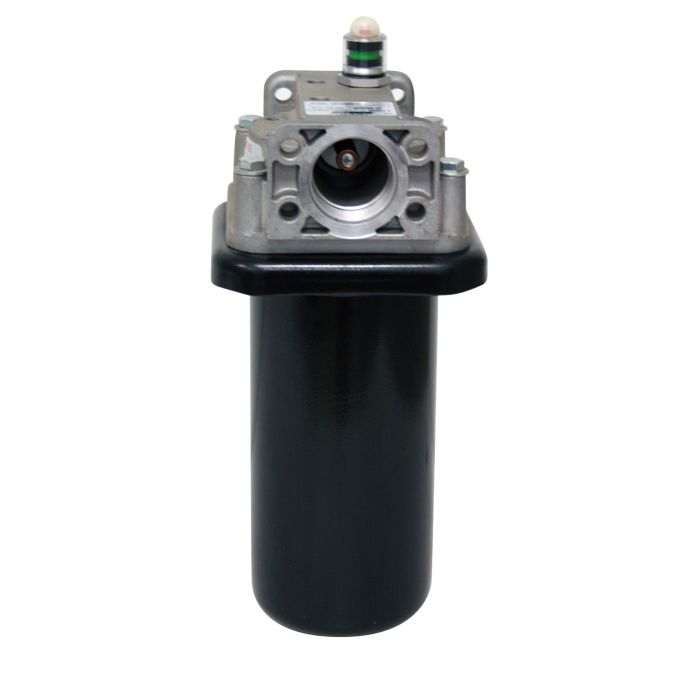

KF3 Series Return Filters, Up To 100 GPM & 300 PSI
Bypass Setting |
Cracking: 30 psi, Full Flow: 51 psi. |
Element Change Clearance |
1.50'' |
Features |
Meets HF4 automotive standard. Offered in pipe, SAE straight thread, flange and ISO 228 porting. Various Dirt Alarm® options. |
Flow Rating |
Up to 100 gpm for 150 SUS fluids. |
Housing |
Die Cast Aluminum Head, Steel Element Case. |
Maximum Operating Pressure |
300 psi. |
Temperature Range |
-20°F to 225°F |
Products
| Model Number | Length | Element | Micron Rating | Seal Material | Ports | Includes | Features | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| KF31KZ25SD5 | 9.0 | Synthetic | 25 | Buna-N | SAE-24 | Pop-Up Indicator |
|
