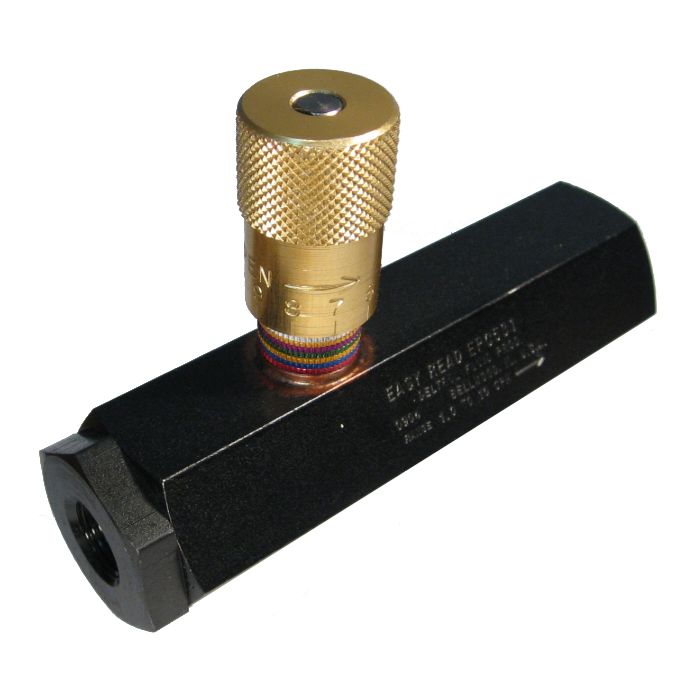

Inline Easy Read Pressure-Compensated Flow Control Valves (Up To 34 GPM)
Application |
Controlled flow in one direction, free flow in opposite direction. Valves will start to control flow at 60 to 70 PSI pressure drop. Flow regulated between ± 10% above 1.5 GPM, ± 15% 0.5 to 1.5 GPM. Flow adjustment can be made under pressure. Setting can be locked with set screw. Steel valves for use in hydraulic systems. |
Features |
Pressure Compensated. Color coding and numerical readout allow positive, precise and repeatable settings. Can be accurately adjusted within a small fraction of a turn (one full turn per color). Metal knob and stem for durability. |
Materials |
Body: Steel. Needle: Stainless steel. O-Ring: Viton®. Washer: Teflon®. Knob: Aluminum. Piston: Steel. Spring: Music wire. |
Temperature Range |
-15°F to 200°F. |
Products
| Model Number | Size | Thread 1 | Maximum Operating Pressure | Flow Range | Minimum Differential Pressure | A | B | C | Price | Buy Now |
|---|---|---|---|---|---|---|---|---|---|---|
| EPC531 | 3/8 | 3/8-18 NPT | 3000 | 1.0 to 10 | 70 | 1.97 | 1.5 | 5.42 |
|
|
| EPC541 | 1/2 | 1/2-14 NPT | 3000 | 1.5 to 15 | 70 | 1.97 | 1.63 | 5.88 |
|
