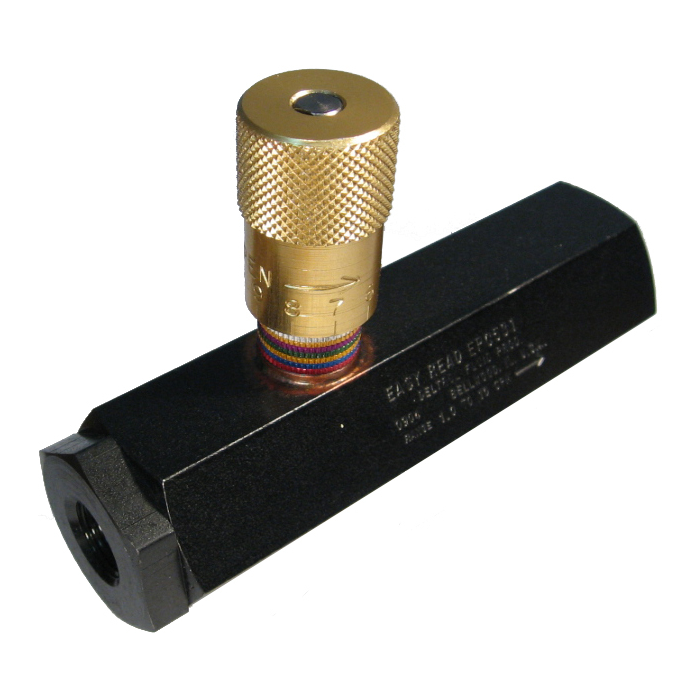

Inline Easy Read Pressure-Compensated Flow Control Valve, Female 3/8-18 NPT Ports, 1.0 to 10 GPM Flow Range

A
1.97
Adjustment
No
B
1.50
C
5.42
Check Valve
No
Brand
Deltrol Fluid Products
Brand
Deltrol Fluid Products
Pack Size
1.00
UOM
EA
Flow Range
1.0 to 10
Maximum Operating Pressure
3000
Minimum Differential Pressure
70
Size
3/8
Supplier Part Number
EPC531
Thread 1
3/8-18 NPT
Alternate Part Numbers
Alternate Part Number C1CP31, Alternate Part Number MI-00915928, Alternate Part Number MINO-00223X12150
Product Weight
2.47 lbs

Product Questions & Answers

Will this here flow control valve work okay in a hydraulic system that's gonna see some pretty high pressure, say around 2800 PSI on the regular?
Question by: Judy W on Dec 10, 2025, 9:48 PM
This valve is rated for a maximum operating pressure of 3000 PSI, so you should be good to go in a system running consistently around 2800 PSI.
Answer by: Customer Support on Dec 12, 2025, 9:42 PM
got a cylinder that wants to run one speed extend, but i need it to come back quick. is that what this valve’s for?
Question by: Glen R on Jan 9, 2026, 6:53 PM
For that kind of setup, it’s a good fit. It gives controlled flow in one direction, then allows free flow the other way, so you can slow the cylinder one way and let it return faster in the opposite direction.
Answer by: Customer Support on Jan 11, 2026, 7:27 AM
flow adjustment on this thing, can you do it while the system's still running under pressure, or do you have to shut everything down first?
Question by: Tommy B on May 20, 2025, 9:04 AM
You can make flow adjustments while the system is under pressure, no shutdown needed. The knob is aluminum with color coding and a numerical readout, so you can dial in your setting and know exactly where you are without guessing. Once you've got it where you want it, there's a set screw that lets you lock the adjustment in place so it won't drift on you.
Answer by: Customer Support on May 22, 2025, 6:43 AM

Similar Products

Model Number Size Thread 1 Maximum Operating Pressure Flow Range Minimum Differential Pressure A B C Price Buy Now
EPC531 3/8 3/8-18 NPT 3000 1.0 to 10 70 1.97 1.5 5.42
EPC541 1/2 1/2-14 NPT 3000 1.5 to 15 70 1.97 1.63 5.88
