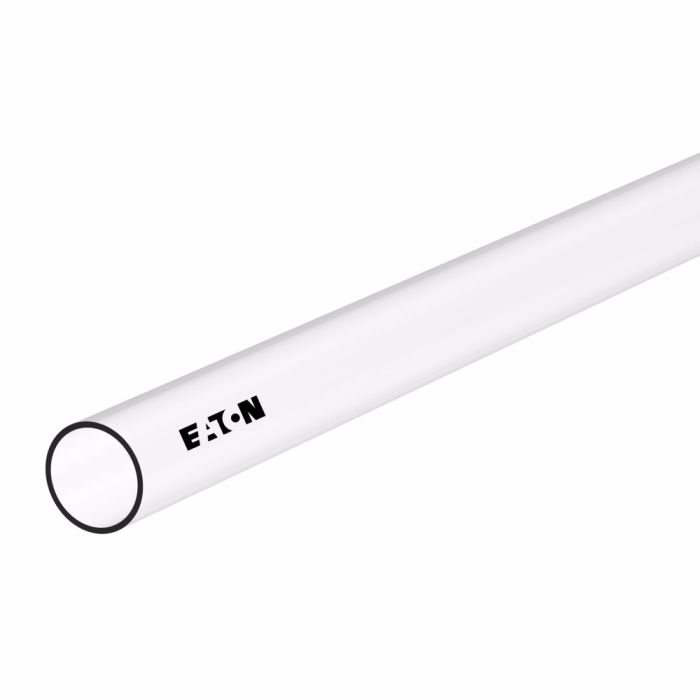

WEATHERHEAD PT200 Tubing IGPT20006NA-100

Specifications

Abrasion Resistance 28	Application Air and general purpose.	Certifications NSF-51	Color Natural	Compliances FDA Approved	Conductivity 30	Construction Extruded	Cover Material PVC	Dash Size -6	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 1.50	Minimum Bend Radius 1.5	Minimum Working Temperature -5	Net Pack Quantity Units FT	NMFC 70	Product Width 0.38	Qualified Hose Fittings Polyline, SelfAlign with 2030x insert, Compression with 2030x insert, Molded Compression	Sub Brand None	Supplier Part Number PT20006NA-100	Tube Material Polyvinyl Chloride (PVC)	Product Weight 3.00 lbs

Product Questions & Answers 3

Product Questions & Answers

What size fittings work with this tubing?

Question by: Norm J on Aug 21, 2025, 12:38 PM

This Weatherhead PT200 tubing supports Polyline and SelfAlign fittings with 2030x inserts. It also works with compression fittings that use a 2030x insert and molded compression fittings.

Answer by: Customer Support on Aug 23, 2025, 6:23 AM

tubing says it's FDA approved and NSF-51 certified, does that mean it's actually safe to run food-grade air lines with it?

Question by: Patty C on Apr 20, 2025, 6:54 AM

Both of those certifications together make it a solid pick for food and beverage environments. NSF-51 covers food equipment materials, and FDA compliance means the PVC compound meets federal standards for contact with food-related applications. Running clean air lines through a processing facility is exactly the kind of use this tubing was built around. Just keep in mind the minimum working temperature is listed at -5 degrees, so if your facility runs cold you'll want to account for that.

Answer by: Customer Support on Apr 21, 2025, 7:55 PM

got a tight turn to make in a cabinet, how sharp can i bend this PT200 tubing without kinkin it

Question by: Neal H on Sep 27, 2025, 6:50 AM

Minimum bend radius on the PT200 is 1.5 inches, so you want your bend to stay at or above that to help it keep its shape and flow.

Answer by: Customer Support on Sep 29, 2025, 6:12 AM
