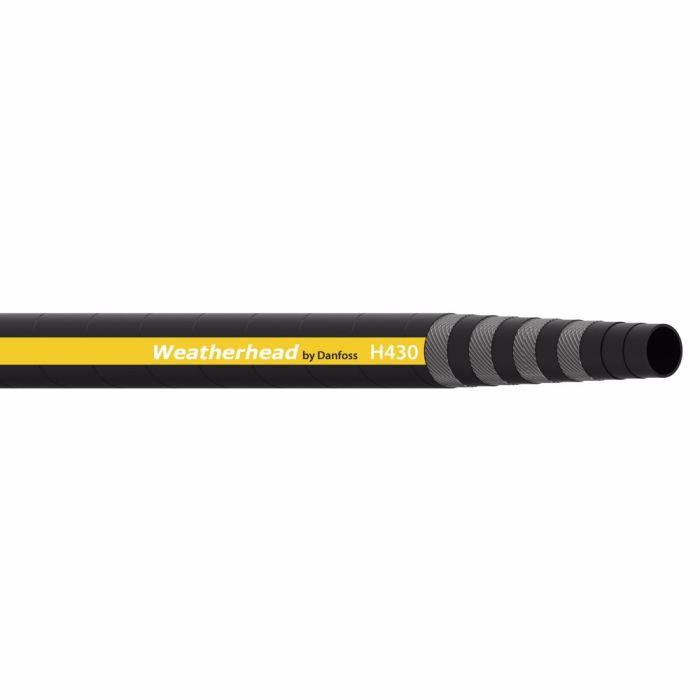

WEATHERHEAD H430 Hydraulic Hose. 100R12 IGH43020-100

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1JJ28	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications SAE 100R12\|EN856 4SP\|EN856 Type R12	Color Black	Compliances MSHA Approved\|DNV\|ABS Certified\|USCG	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -20	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 8.27	Minimum Bend Radius 8.27	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.87	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Sub Brand Weatherhead	Supplier Part Number H43020-100	Tube Material Synthetic Rubber	Product Weight 1.40 lbs

Product Questions & Answers 3

Product Questions & Answers

Can I use this with just regular old water, or does it need something special?

Question by: Shane O on Dec 16, 2025, 10:13 AM

Application of this hose is intended for hydraulic systems that use either petroleum-based or water-based fluids.

Answer by: Customer Support on Dec 17, 2025, 5:44 PM

got a -20 line on a piece of equipment, is this H430 hose the right type for petroleum oil or water-glycol hydraulic fluid

Question by: Gary A on Jul 17, 2025, 8:18 PM

For hydraulic system service, the H430 is intended for petroleum and water-based fluids in general industrial applications, and it meets SAE 100R12 along with EN856 4SP and EN856 Type R12.

Answer by: Customer Support on Jul 19, 2025, 6:12 AM

Four-spiral wire reinforcement on this one, does that mean it can handle the really high-pressure lines, or is it more of a mid-range hose?

Question by: Brett S on Nov 9, 2025, 3:35 PM

Four-spiral construction puts it firmly in the high-pressure category. It meets SAE 100R12 and EN856 4SP certifications, which are both heavy-duty ratings built for demanding hydraulic systems. The robust wire reinforcement is specifically what allows it to handle the highest pressures in general industrial hydraulic service, and the system is engineered to extend hose assembly life rather than just meet minimum specs.

Answer by: Customer Support on Nov 11, 2025, 6:33 AM
