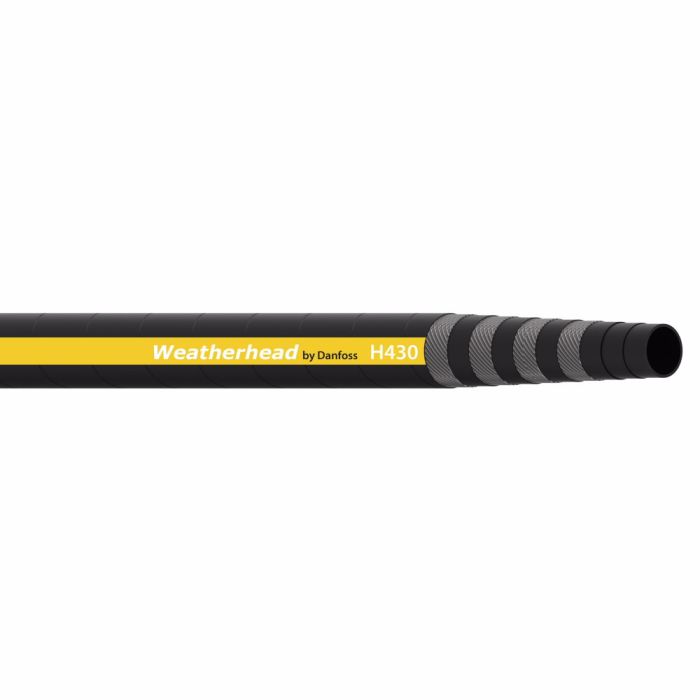

WEATHERHEAD H430 Hydraulic Hose. 100R12 IGH43016

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HB53	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications EN856 4SP\|EN856 Type R12\|SAE 100R12	Color Black	Compliances USCG\|MSHA Approved\|DNV\|ABS Certified	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 5.91	Minimum Bend Radius 5.91	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.52	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Sub Brand Weatherhead	Supplier Part Number H43016	Tube Material Synthetic Rubber	Product Weight 60.00 lbs

Product Questions & Answers 3

Product Questions & Answers

got a tight spot to route hose. what’s the minimum bend radius on the -16 H430?

Question by: Wes C on Dec 11, 2025, 8:46 AM

For the -16 size, the minimum bend radius is 5.91 inches, so you will want to keep your routing at or above that to avoid over-bending the hose.

Answer by: Customer Support on Dec 13, 2025, 8:38 AM

Can this hose handle hydraulic fluid in a regular ol' industrial setup?

Question by: Brenda P on Jan 11, 2026, 7:07 AM

Application-wise, it's made for hydraulic systems running both petroleum and water-based fluids, just like you'd find in general industrial use.

Answer by: Customer Support on Jan 13, 2026, 7:04 AM

four spiral plies on this one, does that mean it can handle the higher pressure demands you'd run into in heavy industrial hydraulic setups?

Question by: Randy L on Jan 9, 2026, 9:35 AM

Four-spiral construction is built for exactly that kind of work. The H430 is rated to SAE 100R12 and certified to EN856 4SP and EN856 Type R12, which are specifications tied to high-pressure hydraulic service. The robust reinforcement is what lets it hold up under the kind of sustained pressure loads you see in general industrial hydraulic systems running petroleum or water-based fluids.

Answer by: Customer Support on Jan 11, 2026, 8:14 AM
