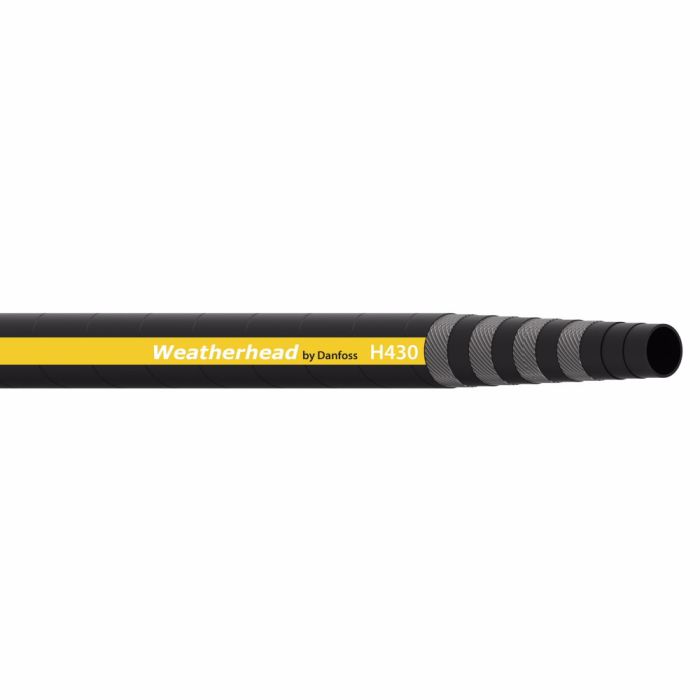

WEATHERHEAD H430 Hydraulic Hose. 100R12

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HB54, Alternate Part Number IGH43016-150R	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications EN856 4SP\|SAE 100R12\|EN856 Type R12	Color Black	Compliances USCG\|ABS Certified\|DNV\|MSHA Approved	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -16	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 1000000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 5.91	Minimum Bend Radius 5.91	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.52	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Sub Brand Weatherhead	Supplier Part Number H43016-150	Tube Material Synthetic Rubber	Product Weight 180.00 lbs

Product Questions & Answers 1

Product Questions & Answers

got a tight spot to route hose, how tight can this H430 -16 bend without kinkin it

Question by: Judy T on Jan 14, 2026, 6:25 PM

Minimum bend radius on the H430 -16 is 5.91 inches. Keeping your routing at or above that radius helps avoid kinks and stress that can shorten hose life.

Answer by: Customer Support on Jan 16, 2026, 6:41 AM
