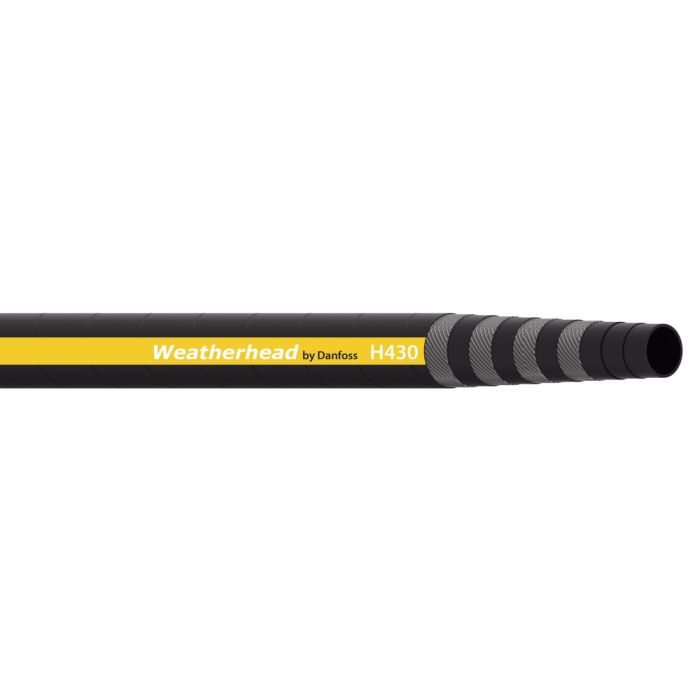

WEATHERHEAD H430 HYDRAULIC HOSE. 100R12

Abrasion Resistance 28	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications EN856 4SP\|SAE 100R12\|EN856 Type R12	Class WEB-ITEM	Color Black	Compliances USCG\|ABS Certified\|MSHA Approved\|DNV	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 4.72	Minimum Bend Radius 4.72	Minimum Working Temperature -40	Product Width 1.24	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Supplier Part Number H43012-100	Tube Material Synthetic Rubber	Product Weight 90.00 lbs

Product Questions & Answers 1

Product Questions & Answers

If I'm running this hose near an engine, what's the lowest temperature it can handle without failing?

Question by: Roger A on Sep 19, 2025, 9:42 AM

Rated for a minimum working temperature of -40°F, this hose is well-suited for engine environments, as long as the temperature stays within the specified range.

Answer by: Customer Support on Sep 21, 2025, 6:55 AM
