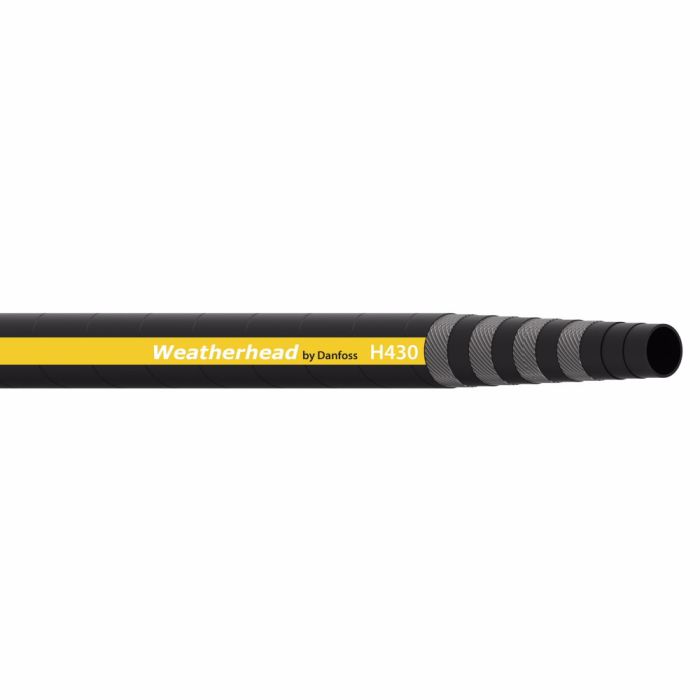

WEATHERHEAD H430 Hydraulic Hose. 100R12

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HB49	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications EN856 Type R12\|EN856 4SP\|SAE 100R12	Color Black	Compliances MSHA Approved\|DNV\|USCG\|ABS Certified	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 3.54	Minimum Bend Radius 3.54	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.96	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Sub Brand Weatherhead	Supplier Part Number H43008	Tube Material Synthetic Rubber	Product Weight 29.50 lbs

Product Questions & Answers

got a tight spot on a machine, how sharp can i bend this -8 hose without kinkin it

Question by: Wade E on Apr 10, 2025, 4:04 PM

Minimum bend radius on the H430 dash-8 is 3.54 inches. Staying at or above that radius helps it flex without putting the reinforcement into a kink.

Answer by: Customer Support on Apr 12, 2025, 6:02 AM
