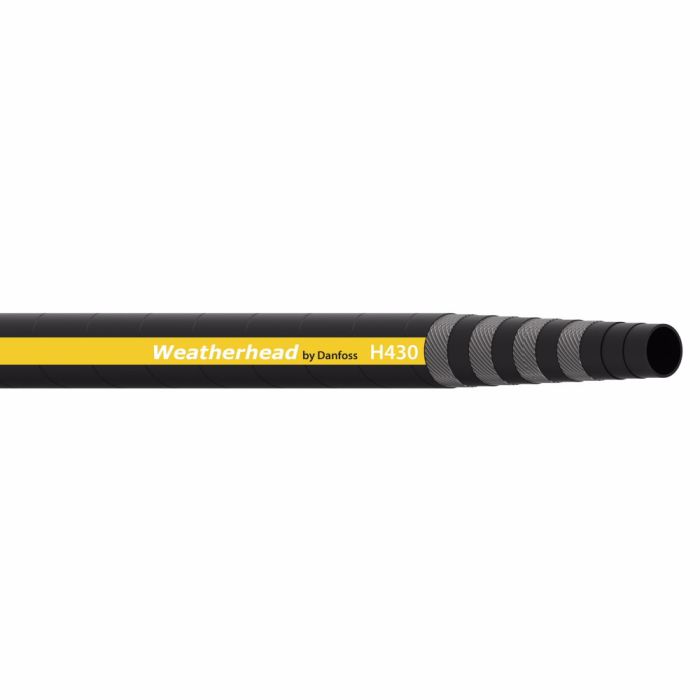

WEATHERHEAD H430 Hydraulic Hose. 100R12 IGH43008-150

Specifications

Abrasion Resistance 28	Alternate Part Numbers Alternate Part Number C1HB50, Alternate Part Number IGH43008-150R	Application Hydraulic system service with petroleum and water based fluids, for general industrial use	Certifications EN856 Type R12\|SAE 100R12\|EN856 4SP	Color Black	Compliances MSHA Approved\|ABS Certified\|USCG\|DNV	Construction 4 Spiral	Cover Material Synthetic Rubber	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Impulse Cycle Life 500000 cycle	Language English	Lay Line Style Embossed	Minimum Bend Radius 3.54	Minimum Bend Radius 3.54	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 0.96	Qualified Hose Fittings 430 U, 4S	Reinforcement Material Wire	Sub Brand Weatherhead	Supplier Part Number H43008-150	Tube Material Synthetic Rubber	Product Weight 88.50 lbs

Product Questions & Answers 3

Product Questions & Answers

hose is rated for petroleum-based fluids, but what about water-based hydraulic fluid? got a system running both at different points and want to make sure one hose handles it

Question by: Daryl B on May 18, 2025, 1:41 PM

Petroleum and water-based hydraulic fluids are both covered with this hose. The synthetic rubber tube is built to handle either type, so running one hose across both fluid types in your system isn't a problem from a compatibility standpoint.

Answer by: Customer Support on May 19, 2025, 6:22 PM

got a tight spot to snake a hose through. how bendy is this H430 100R12 in the -8 size?

Question by: Gene H on Jun 22, 2025, 3:58 PM

For routing and clearance, the published minimum bend radius is 3.54 for this hose, so you will want to keep your bends at or above that to avoid kinking and stressing the reinforcement.

Answer by: Customer Support on Jun 24, 2025, 6:21 AM

What kind of temperatures can this hose handle?

Question by: Tommy P on Mar 14, 2026, 11:09 AM

This hose is rated to operate down to -40 degrees.

Answer by: Customer Support on Mar 16, 2026, 6:01 AM
