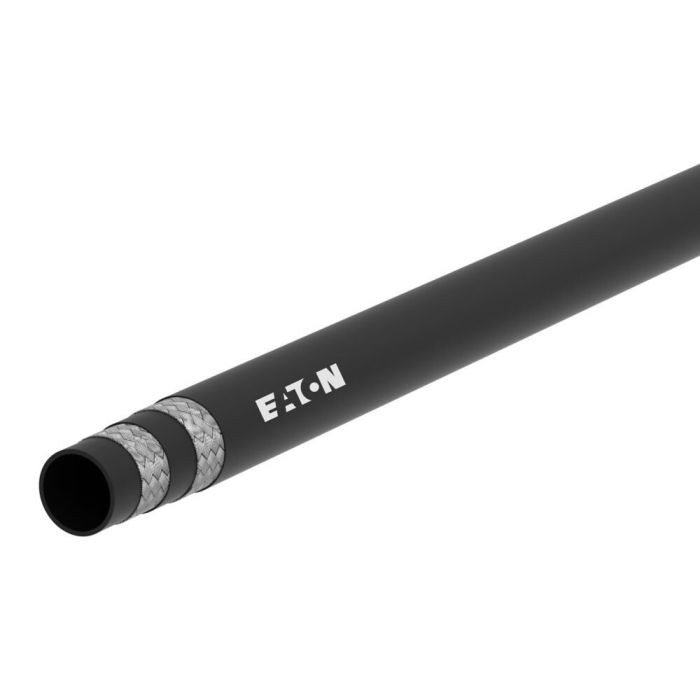

WEATHERHEAD H425 Hydraulic Hose. SAE100R2 IGH42508-250R

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB41	Certifications SAE 100R2\|ABS\|SAE J1942/1	Color Black	Compliances MSHA Approved	Construction 2-ply braid	Cover Material Neoprene	Dash Size -8	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	ICC Hoses and Flexible Tubes	Impulse Cycle Life 200000 cycle	Language English	Minimum Bend Radius 7	Minimum Bend Radius 7	Minimum Working Temperature -40	NMFC 70	Product Width 0.88	Qualified Hose Fittings U, S, 425 N, Z	Reinforcement Material Steel	Supplier Part Number H42508-250R	Tube Material Nitrile	Product Weight 112.50 lbs

Product Questions & Answers 2

Product Questions & Answers

got a tight spot on a loader, how sharp can i bend this H425 hose without kinkin it

Question by: Clint M on Feb 26, 2026, 1:45 PM

For routing, the minimum bend radius on the H425 in -8 dash size is 7 inches. Keeping your bend at 7 inches or larger helps prevent kinking and supports longer service life in moving hydraulic lines.

Answer by: Customer Support on Feb 28, 2026, 6:07 AM

Got a system running petroleum-based fluid and I need a -8 hose that can handle some real pressure cycles. This one rated for that kind of duty?

Question by: Merle R on Jul 28, 2025, 7:11 AM

Two-ply steel braid construction and a nitrile inner tube make this hose a solid fit for petroleum-based hydraulic fluid systems. It carries an SAE 100R2 rating and is built to handle 200,000 impulse cycles, so repeated pressure spikes over time are well within what it was made for. The -8 dash size lines up with medium-to-high pressure hydraulic work, and it pairs with Weatherhead U, S, 425 N, and Z series fittings if you need to match up your end connections.

Answer by: Customer Support on Jul 30, 2025, 6:41 AM
