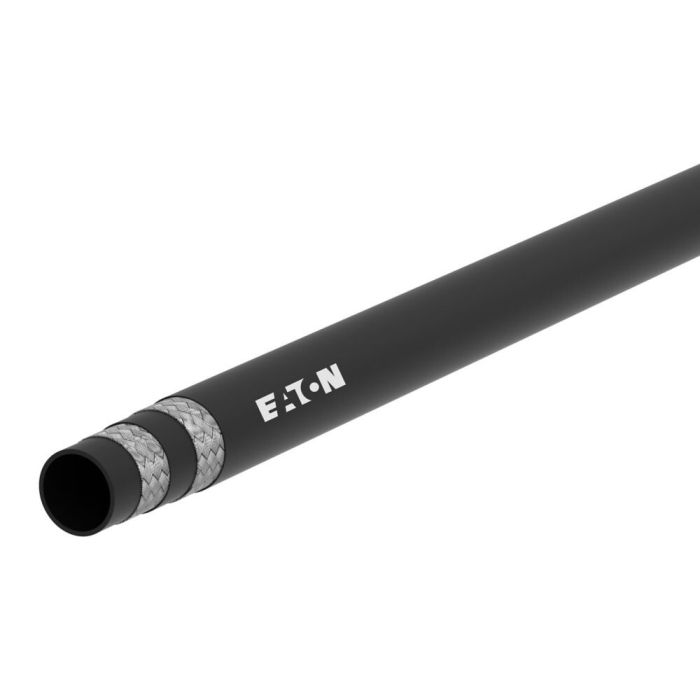

WEATHERHEAD H425 Hydraulic Hose. SAE100R2

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB35	Certifications ABS\|SAE 100R2\|SAE J1942/1	Color Black	Compliances MSHA Approved	Construction 2-ply braid	Cover Material Neoprene	Dash Size -4	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	ICC Hoses and Flexible Tubes	Impulse Cycle Life 200000 cycle	Language English	Minimum Bend Radius 4	Minimum Bend Radius 4	Minimum Working Temperature -40	NMFC 70	Product Width 0.59	Qualified Hose Fittings U, S, 425 N, Z	Reinforcement Material Steel	Supplier Part Number H42504-250R	Tube Material Nitrile	Product Weight 70.00 lbs

Product Questions & Answers 1

Product Questions & Answers

Does this hose work down to really cold temps? We run equipment through the winter and need something that won't get brittle on us.

Question by: Diane M on Jun 7, 2025, 5:01 PM

Rated for a minimum working temperature of -40 degrees F, so cold weather operation shouldn't be a problem. The nitrile tube and neoprene cover hold up well in those conditions without going stiff or cracking under normal use.

Answer by: Customer Support on Jun 9, 2025, 6:39 AM
