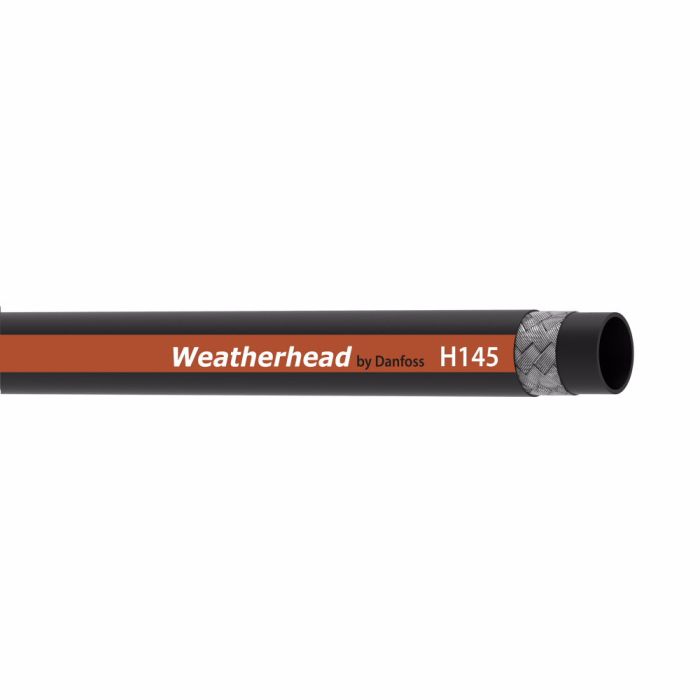

Weatherhead H145 Hydraulic Hose

Abrasion Resistance 29	Application Construction.	Certifications SAE 100R17\|SAE J1942/1-Hydraulic only	Class WEB-ITEM	Color Black	Compliances MSHA Approved	Construction 2-ply braid	Cover Material Neoprene	Dash Size -12	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features Maximum durability under harsh operating conditions\|Robust construction able to withstand highest pressures\|System engineered to extend hose assembly life	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 4.75	Minimum Bend Radius 4.75	Minimum Working Temperature -40	Net Pack Quantity Units FT	NMFC 70	Product Width 1.16	Qualified Hose Fittings U, S, Z	Reinforcement Material Wire	Supplier Part Number H14512	Tube Material Nitrile	Product Weight 0.54 lbs

Product Questions & Answers

What kind of fittings work with this hose? U and S, right?

Question by: Scott M on Feb 15, 2026, 4:23 PM

That's correct. This Weatherhead hydraulic hose is qualified to work with U, S, and Z fittings.

Answer by: Customer Support on Feb 17, 2026, 3:00 PM
