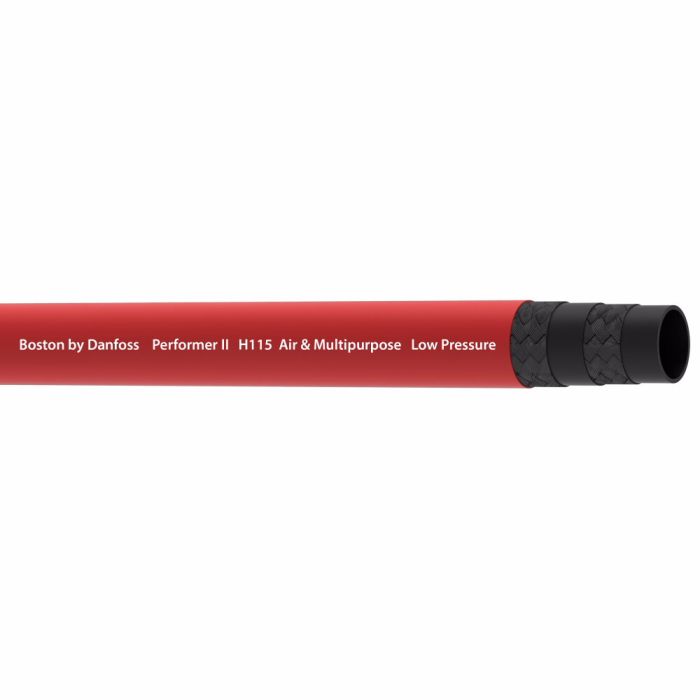

WEATHERHEAD H115 Hose IGH11520

Specifications

Abrasion Resistance 29	Alternate Part Numbers Alternate Part Number C1HB25	Application Air and multi purpose.	Color Red	Conductivity 30	Construction 2-ply braid	Cover Material Vinyl Nitrile	Dash Size -20	Brand Danfoss (IGS)	Brand Danfoss Power Solutions	Pack Size 1.00	UOM FT	Features A solution for every hose need\|Industry leader since 1870\|Designed for safety and reliability	ICC Hoses and Flexible Tubes	Language English	Lay Line Style Ink Jet	Minimum Bend Radius 101	Minimum Bend Radius 101	Minimum Working Temperature -40	NMFC 70	Product Width 1.75	Qualified Hose Fittings Z, 430 U	Reinforcement Material Polyester	Sub Brand None	Supplier Part Number H11520	Tube Material Nitrile	Product Weight 32.50 lbs

Product Questions & Answers 3

Product Questions & Answers

Reckon this hose could handle bein' bent pretty good without crimpin' up on me?

Question by: Tammy F on Sep 3, 2025, 8:35 AM

The minimum bend radius for this Weatherhead H115 hose is 101, so it can definitely handle some tight turns. Just keep that number in mind during installation to prevent kinking or damage.

Answer by: Customer Support on Sep 4, 2025, 9:28 PM

what's the lowest temp this hose can handle before it starts giving me trouble?

Question by: Brett T on Aug 23, 2025, 6:06 AM

Rated down to -40 degrees, so cold weather shouldn't be an issue for most outdoor or unheated shop setups. The nitrile tube material holds up well at low temperatures, which is part of why this hose works in demanding conditions where cheaper options tend to get stiff or crack.

Answer by: Customer Support on Aug 24, 2025, 6:35 AM

got a -20 hose to swap out, is the Weatherhead H11520 the same dash size and how’s it marked?

Question by: Freddie M on Jan 28, 2026, 9:14 AM

The key callout is the dash size and this one is a -20. Identification is by an ink jet lay line on the hose.

Answer by: Customer Support on Jan 30, 2026, 6:00 AM
